Basic Info
Wall Thinkness(Shell+Inner)
1.85+3.25mm
Length Deviation
+-1mm
Length(in/mm)
118.12/3000 or Customized
Hardeness
up to 68HRC
Hardened Process
UHF Quenching (400kHz)
Theoretical Weight(Lbs/Kg)
104.5/47.4
Flange Tape
Sk148 HD157 Zx175 FM175
Weld Tensile Strength
>480bar
Test Pressure
170bar
Color
Red Black White or Customized
Surface Coating
Baking Paint
Trademark
Ximai
Transport Package
Standard Export Package
Specification
DN125/5"
Origin
China
HS Code
841391
Product description
High quality twin wall concrete pump pipes

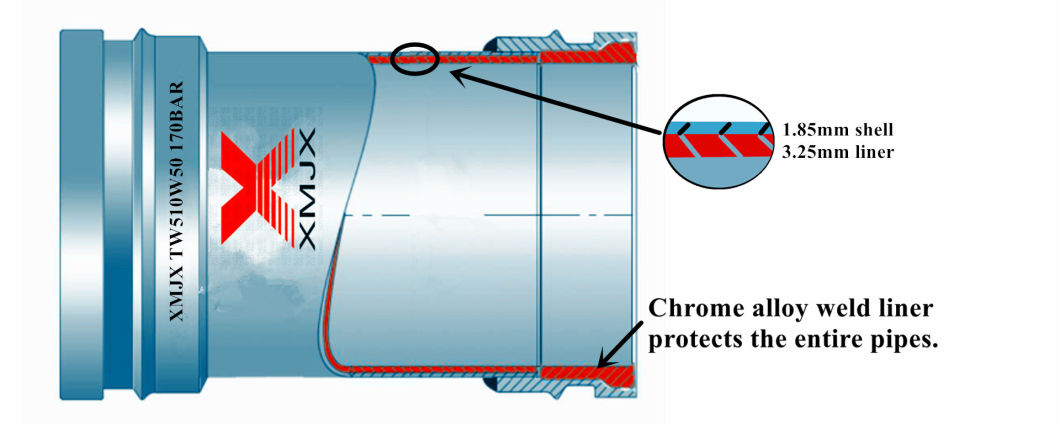

| TWIN WALL BOOM PIPE DN125 5.1mm (3.25m + 1.85mm) | with 148mm chrome alloy liner weld ends | |||||||
| Part Number | Length(in/mm) | Theoretical weight(lbs./kg.) | HardenedProcess | HardnessHRC | LengthDeviation | TestPressure | WeldTensileStrength | SurfaceCoating |
| TW510W50L1M | 39.37/1000 | 37/16.8 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 170bar | >480bar | Baking paint |
| TW510W50L2M | 78.75/2000 | 70/31.6 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 170bar | >480bar | Baking paint |
| TW510W50L3M | 118.12/3000 | 104.5/47.4 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 170bar | >480bar | Baking paint |
| TW510W50L4M | 157.48/4000 | 139/63.2 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 170bar | >480bar | Baking paint |
| TW510W50L6M | 236.22/6000 | 209/94.8 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 170bar | - | Primer |
| Any length can be customized,please consult us. | ||||||||
1.We are a professional manufacturer of concrete pump pipes in China.Our products include delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.
2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.
3.The HRC of it’s inner wall can reach 60~68 degrees and the serving life of it can increase 3~5 times.
4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has a high wear-resistant.
5.OEM available from us.Production display
Product process

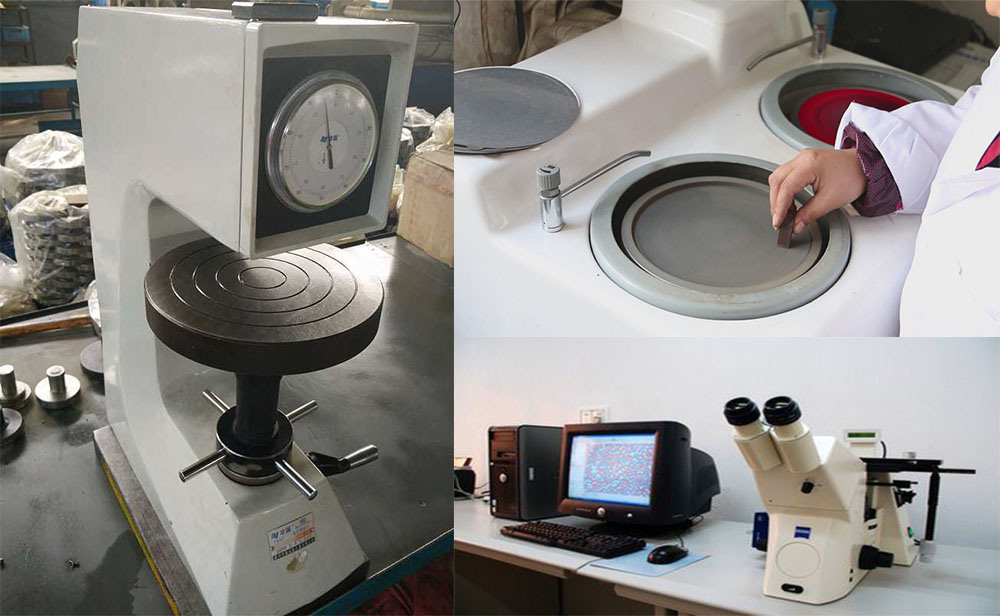

Product test

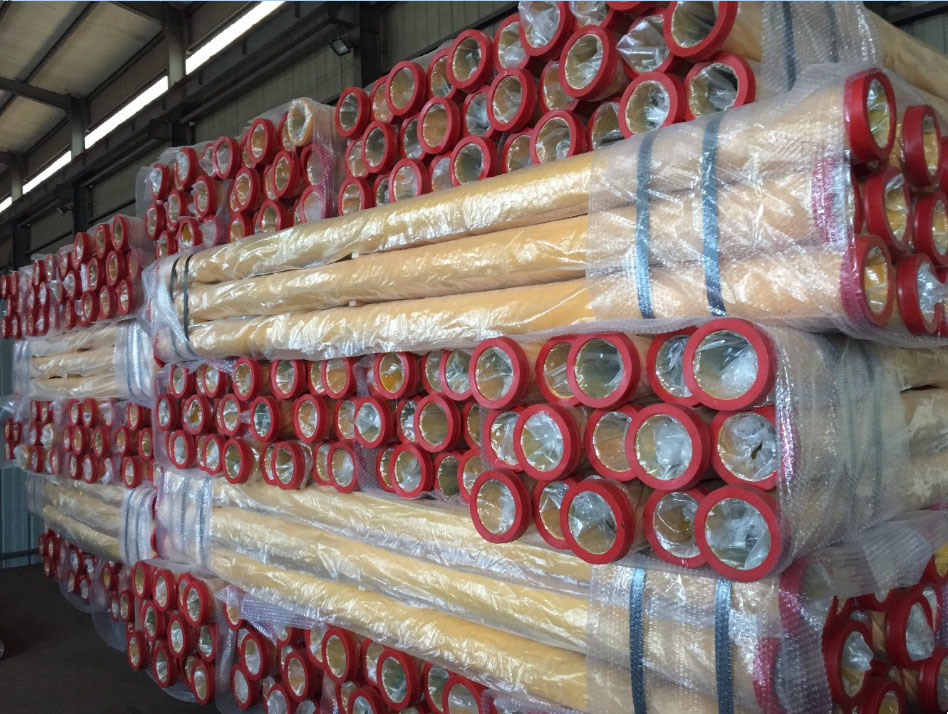

Packaging&Shipping
Contact us
Product detail pictures:
Related Product Guide:
Our development depends on the advanced equipment, excellent talents and continuously strengthened technology forces for Bottom price Used Concrete Pumps - Schwing DN 125 Wear Resisting Competitive Price Pump Concrete Pump Twin Wall Straight Delivery Pipe – Ximai , The product will supply to all over the world, such as: European, Hungary, Seattle, Merchandise have been exported to Asia, Mid-east,European and Germany market. Our company has constantly been able to update the items performance and safety to meet the markets and strive to be top A on stable quality and sincere service. If you have the honor to do business with our company. we'll undoubtedly do our very best to support your business in China.
By Deborah from Bangalore - 2017.04.18 16:45
This company has the idea of "better quality, lower processing costs, prices are more reasonable", so they have competitive product quality and price, that's the main reason we chose to cooperate.
By Juliet from New Zealand - 2018.12.28 15:18
