Concrete Pouring Machine/Boom Placer/ Placing Boom
Basic Info
Model NO.
12M/15M/18m
Vibrating Amplitude
1.4mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Red or Customized
Weight
1200kgs
Trademark
XIMAI
Transport Package
Standard Export Packing
Specification
12m/15m/18m /20m(manual/electric)
Origin
China

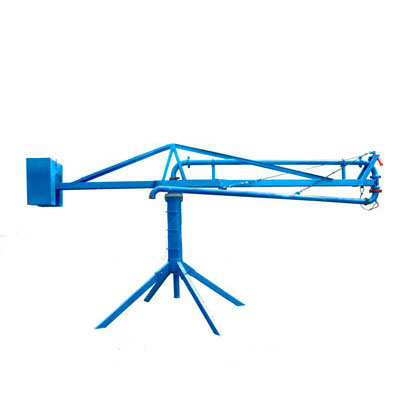

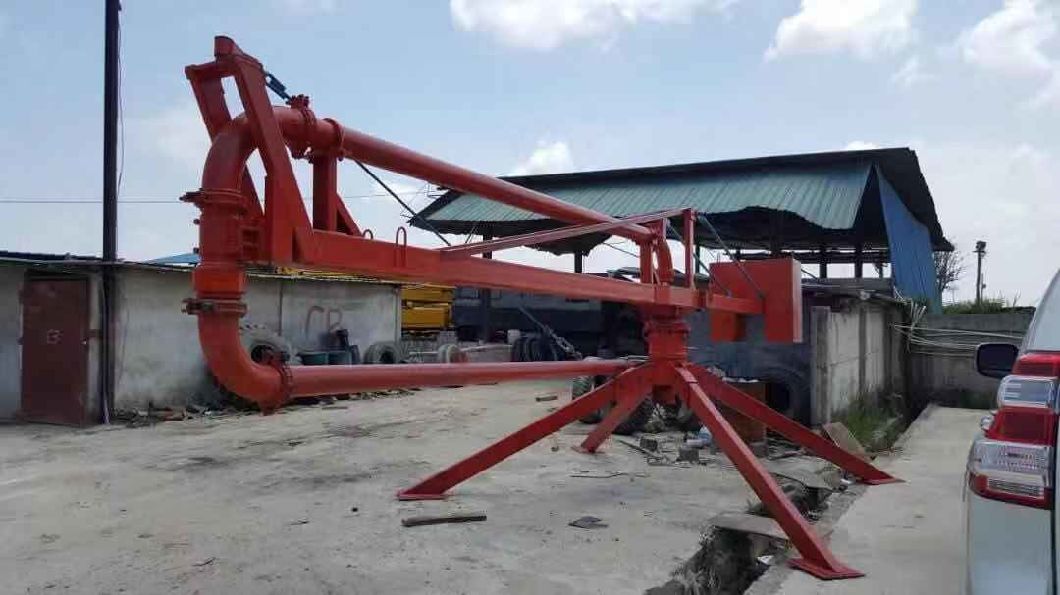

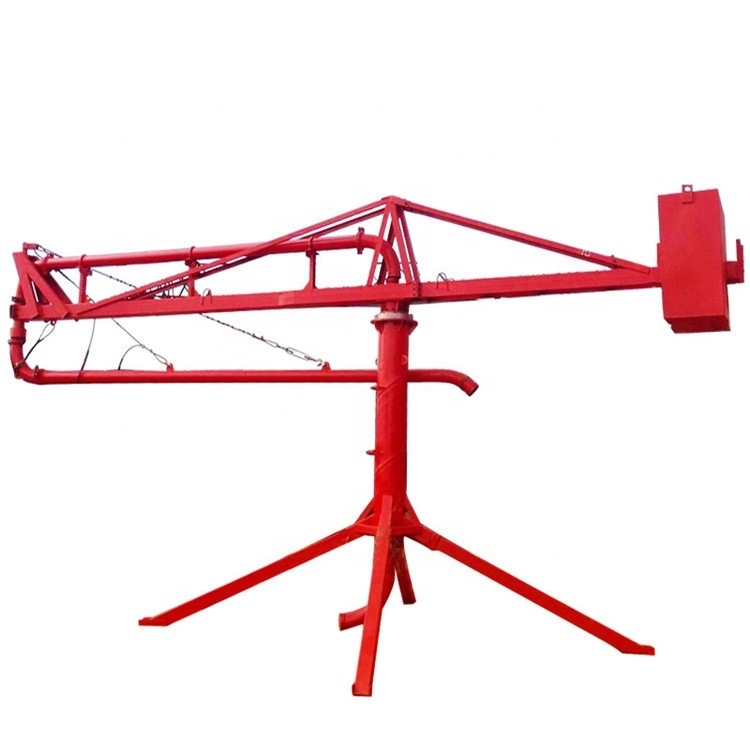

Concrete pouring machine boom placer
Model |
12M |
15M |
18M |
Rotationmode |
Manual |
Manual |
Manual |
MaxTurningradius |
12m |
15m |
18m |
Jibturningradius |
6m |
7.5m |
9m |
the height of placing boom |
4m |
4m |
4m |
placing area |
452m*m |
700m*m |
1017m*m |
Landinglegmaxspan |
3.2m×3.2m |
4m×4m |
4m×4m |
Selfweight |
1100kg |
1400kg |
1900kg |
Counterweight(self-provide) |
1200kg |
1500kg |
20000kg |
Main Features:
1. It can be placed insuitable places required without being fixed.
2. It features compact structure ,light weight and can be lifted as a whole by a crane.
3.With excellent maneuverability,it can meet the requirements for concrete placement on different jobsite ,and is idealfor concrete pumping and placing.
4. Easy operation,reliable safety and economical purchase.
5. It can be drived by people and are flexibility .
