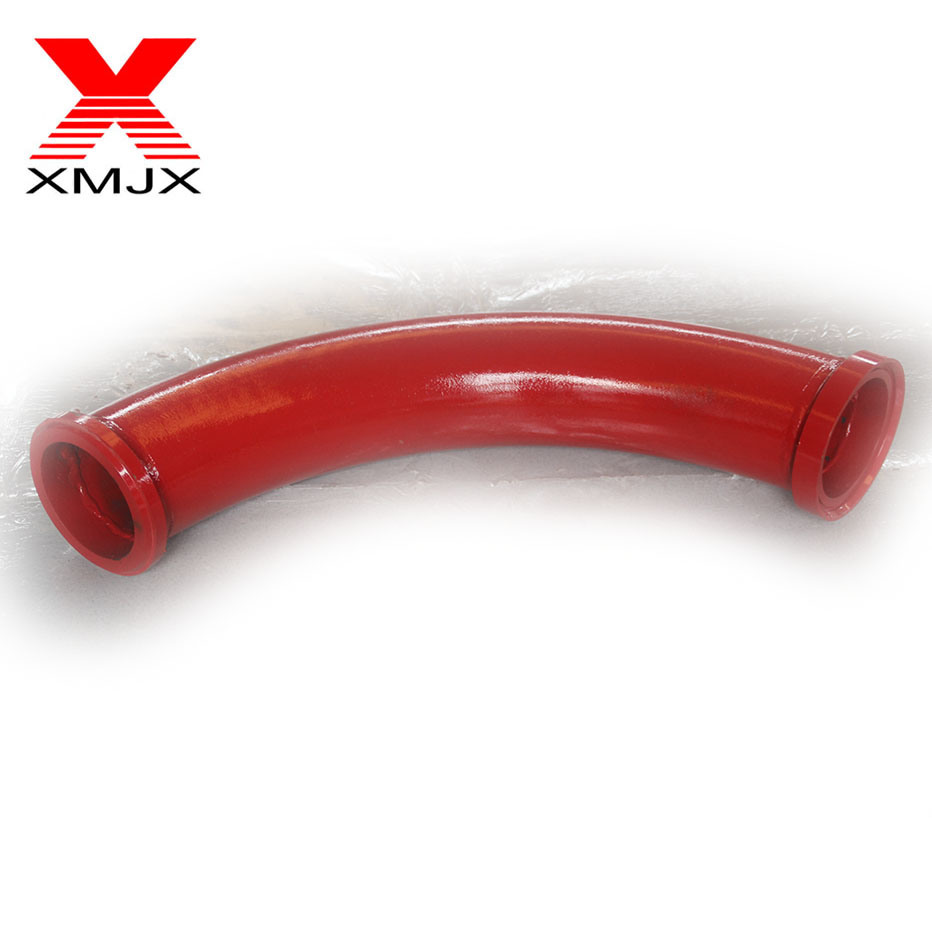

Concrete Pump Elbow Bend Pipe

Short Description:

Port:	Tianjin, China
Production Capacity:	500PCS/Per Day
Payment Terms:	L/C, T/T, D/P, Western Union, Paypal, Money Gram

Type:	Seamless
Technique:	Automatic Welding
Material:	20# St52
Surface Treatment:	Varnishing
Usage:	Machinery Industry, Mining, Construction & Decoration
Section Shape:	Rectangular

Send email to us Download as PDF

Product Detail

Product Tags

Basic Info

Model NO.

DN150-6"

Hardeness

up to 68HRC

Thickness

3.0~14mm

Theoretical Weight(Lbs/Kg)

25.5/11.6

Center Line Radius in./mm

14/356

Length Deviation

<+-1mm

Angular Deviation

<1 Degree

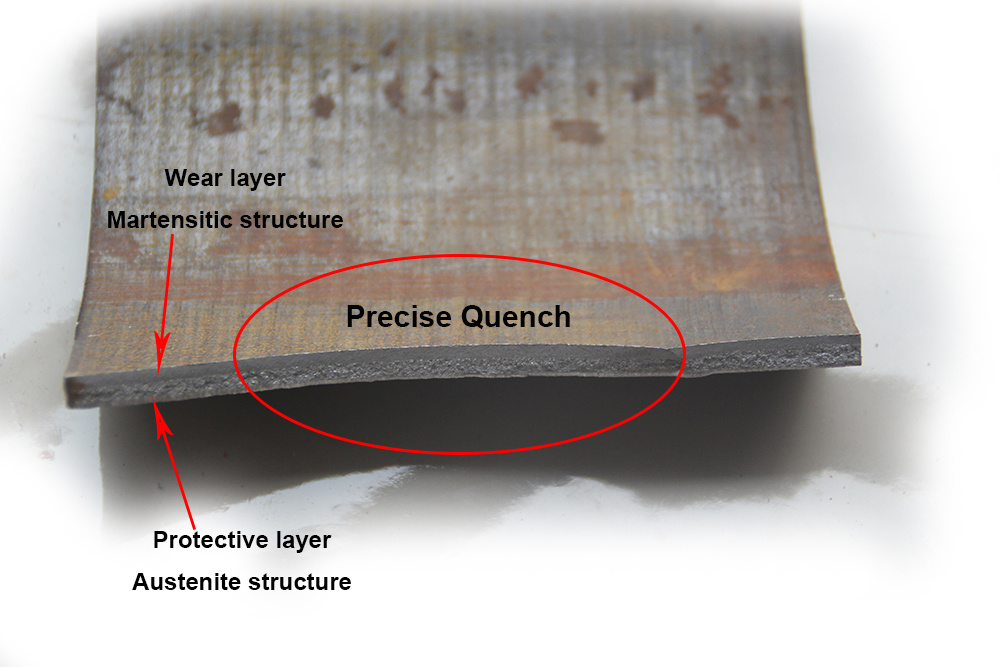

Hardened Process

UHF Quenching (400kHz)

Flange Tape

Sk148 HD157

Weld Tensile Strength

>580bar

Color

Red Black White or Customized

Surface Coating

Baking Paint

Manufacture Process

Pushed/Quenched/Automatic Welding

Pressure Detection Rate

100%

Trademark

Ximai

Transport Package

Standard Export Package

Specification

BEND PIPE DN150-6"

Origin

China

HS Code

841391

Product description………………………………………………………………………………………

High quality staionary concrete pump bend pipes

CONCRETE PUMP BEND PIPE DN150-6"
Part NO.	ODIn./DIN	Center Line RadiusIn./mm	Degree ofAngle	Theoreticalweight(lbs./kg.)
BP1501445	6.0/ DN150	14/356	45	25.5/11.6
BP1501490	6.0/ DN150	14/356	90	36.3/16.5
BP1501845	6.0/ DN150	18/457	45	27/12.3
BP1501890	6.0/ DN150	18/457	90	45/20.5
BP1503245	6.0/ DN150	24/610	45	31.7/16.4
BP1503290	6.0/ DN150	24/610	90	50.6/23
BP1503245	6.0/ DN150	36/914	45	47/21.7
BP1503290	6.0/ DN150	36/914	90	93.5/42.5
BP1504845	6.0/ DN150	48/1219	45	60/27.2
BP1504890	6.0/ DN150	48/1219	90	107/48.5
Any type of elbow can be customized
Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD ENDS

Advantages

The high qualitystructure ensures high abrasion resistance and toughness

Manganese alloy iron casting enables the liner highly wear proof and reduce pressure

Seamless welding enables the the outer layerhard to explode

Light weight improves vehicle efficiency, highly reduces labor and cost and the time for replacement

Designed structure, material and process realize its 3-5 times service life of common products

to extend the service life of other pipe fitting

Easy to use and handle

Our service………………………………………………………………………………………………

High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.

Competitive Price

Large scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop Shopping

Our major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead Time

We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export package

Our package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer Service

Top sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.

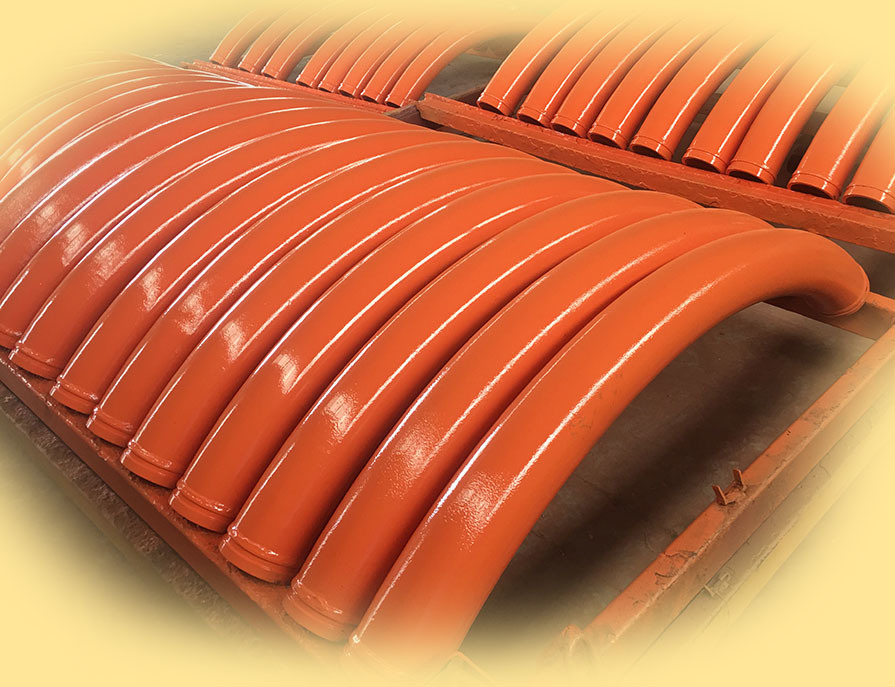

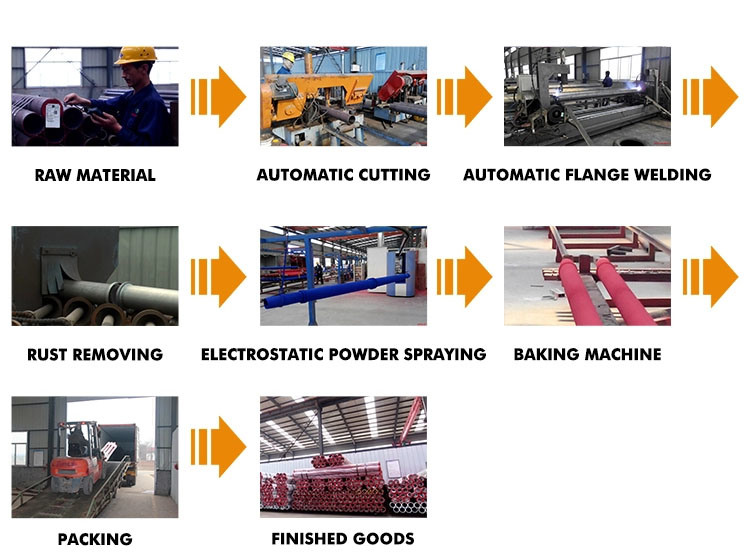

Production display……………………………………………………………………………………….. Concrete Pump Elbow Bend Pipe Product process…………………………………………………………………………………………

Concrete Pump Elbow Bend Pipe Product test……………………………………………………………………………………………………………………………………….

Quality assurance: We hereby confirm to undertake all the losses which caused by our product quality.

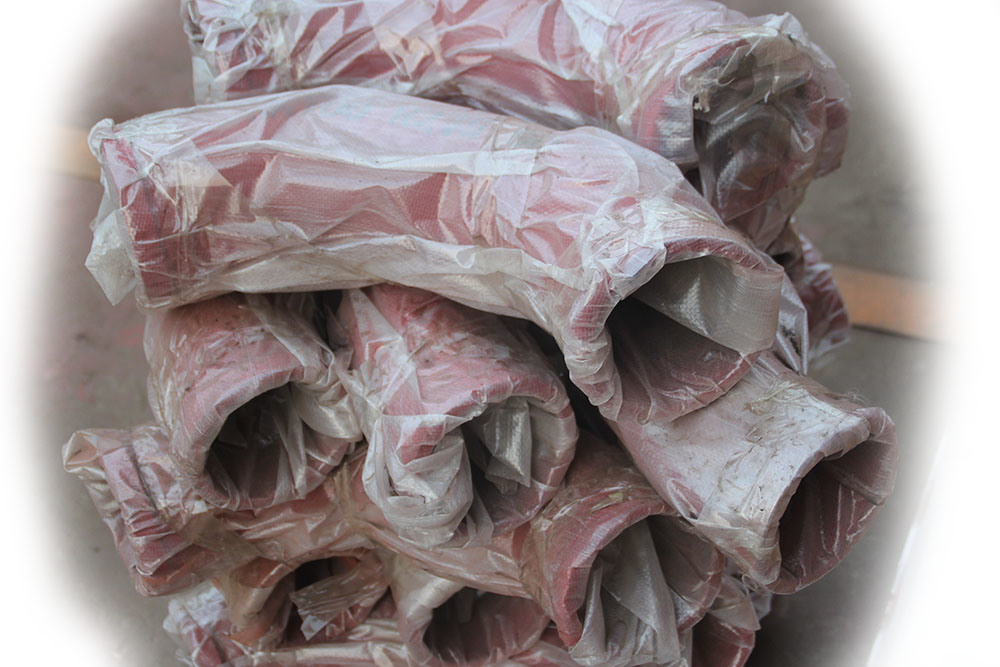

Packaging&Shipping………………………………………………………………………………………………………………………………. Concrete Pump Elbow Bend Pipe Contact us……………………………………………………………………………………………..FAQ………………………………………………………………………………………………………..
