Concrete Pump Parts Elbow Delivery Pipe Bend Pipe Factory Price
Basic Info
Model NO.
DN125-5" 90D
Theoretical Weight(Lbs/Kg)
21/9.6
Length Deviation
<+-1mm
Hardened Process UHF Quenching (400kHz)
UHF Quenching (400kHz)
Weld Tensile Strength
>580bar
Surface Coating
Baking Paint
Pressure Detection Rate
100%
Thickness
8/13mm
Center Line Radius in./mm
14/356
Angular Deviation
<1 Degree
Flange Tape
Sk148 HD157 Zx175 FM175
Color
Red Black White or Customized
Manufacture Process
Pushed/Quenched/Auto
Trademark
Ximai
Transport Package

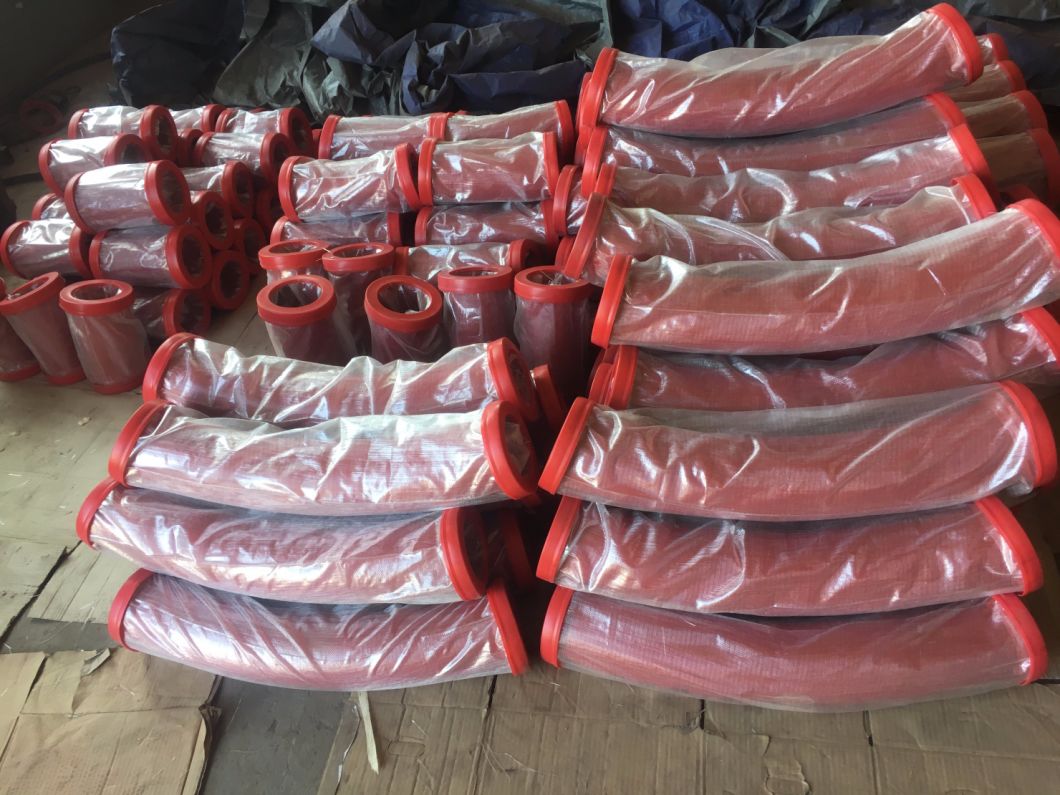

Standard Export Packing
Specification
CONCRETE PUMP BEND PIPE DN125-5"
Origin
China

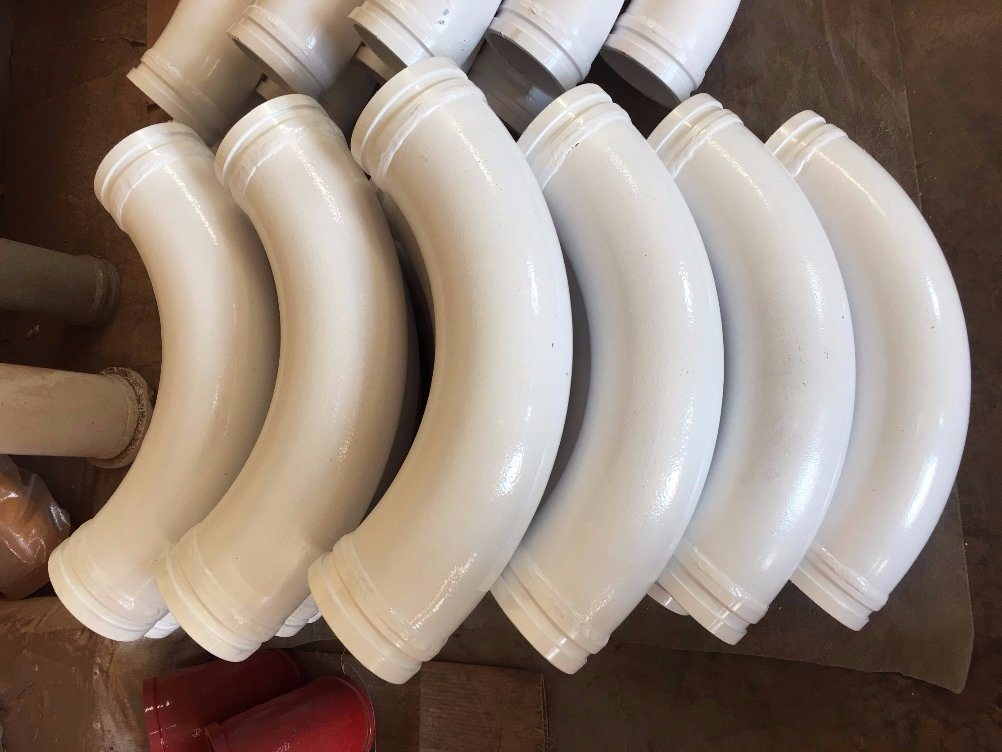

High quality Stationary concrete pump bend pipe
| CONCRETE PUMP BEND PIPE DN125-5" | ||||
| Part NO. | ODIn./DIN | Center Line RadiusIn./mm | Degree ofAngle | Theoreticalweight(lbs./kg.) |
| BP1251445 | 5.0/ DN125 | 14/356 | 45 | 21/9.6 |
| BP1251490 | 5.0/ DN125 | 14/356 | 90 | 30/13.5 |
| BP1251845 | 5.0/ DN125 | 18/457 | 45 | 22.7/10.3 |
| BP1251890 | 5.0/ DN125 | 18/457 | 90 | 38.5/17.5 |
| BP1253245 | 5.0/ DN125 | 24/610 | 45 | 27.3/12.4 |
| BP1253290 | 5.0/ DN125 | 24/610 | 90 | 50.6/23 |
| BP1253245 | 5.0/ DN125 | 36/914 | 45 | 41/18.7 |
| BP1253290 | 5.0/ DN125 | 36/914 | 90 | 80.3/36.5 |
| BP1254845 | 5.0/ DN125 | 48/1219 | 45 | 50.2/22.8 |
| BP1254890 | 5.0/ DN125 | 48/1219 | 90 | 89.1/40.5 |
| Any type of bend can be customized, From 15 deg. to 90 deg. | ||||
| Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD ENDS | ||||
Our service………………………………………………………………………………………………………………………..
High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.Competitive PriceLarge scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop ShoppingOur major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead TimeWe have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export packageOur package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer ServiceTop sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.
