China Concrete Pump Parts Elbow factory and manufacturers

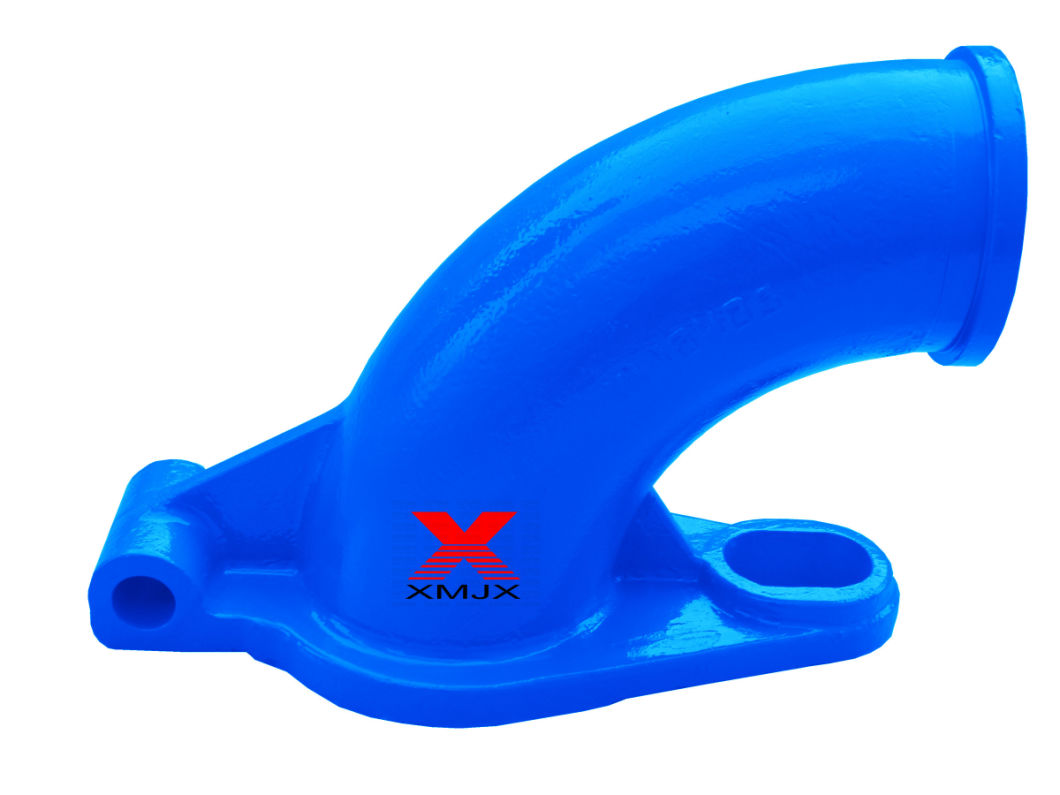

Concrete Pump Parts Elbow

Short Description:

Port:	Tianjin, China
Production Capacity:	500PCS/Day
Payment Terms:	T/T, Western Union, Paypal

Temperature Classification:	High Temperature Piping
MPa Classfication:	High Pressure Piping
Material:	Alloy Steel
Standard:	GB
Diameter:	273mm
Medium:	Fluids With Solid Particle

Send email to us Download as PDF

Product Detail

Product Tags

Basic Info

Cross-Section Shape

Round

Connection Type

Flange

Pressure

350bar

Dimension

Dn180 R460/398 90

Trademark

ximai

Transport Package

Wooden Cases, Standard Seaworthy Packing,According

Specification

40CrMo

Origin

China

HS Code

841391

Product description…………………………………………………………………………………………………………………………………….

High quality concrete pump hinge chain elbow

ZOOM hinged elbow &outlet elbow
Part NO.	Description	Dimension	Material	Theoreticalweight(lbs./kg.)	Pressure
XM00568EB346	ZOOM hinged elbow	DN180 R460/398 90	40CrMo	75.2	350bar
XM00568EB347	ZOOM hinged elbow	DN180 R414/284 90°	40CrMo	61.8	350bar
XM00568EB348	ZOOM hinged elbow	DN180 R464/284 90°	40CrMo	63.9	350bar
XM00568EB349	ZOOM hinged elbow	DN180 R364/284 90°	40CrMo	59.8	350bar
XM00568EB350	ZOOM hinged elbow	DN180 R314/284 90°	40CrMo	57.8	350bar
XM00568EB351	ZOOM chassis elbow	A1000	40CrMo	37.6	350bar
XM00568EB352	ZOOM chassiselbow	571B	40CrMo	38.1	350bar
XM00568EB353	ZOOM Chassis elbow	A1000	40CrMo	36.8	350bar
XM00568EB354	ZOOM Chassis elbow	14000	40CrMo	41.7	350bar

AdvantagesThe high quality structure ensures high abrasion resistance and toughnessManganese alloy iron casting enables the liner highly wear proof and reduce pressureSeamless welding enables the the outer layer hard to explodeLight weight improves vehicle efficiency, highly reduces labor and cost and the time for replacementDesigned structure, material and process realize its 3-5 times service life of common productsto extend the service life of other pipe fittingEasy to use and handleOur service………………………………………………………………………………………………………………………………………..

High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.

Competitive Price

Large scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop Shopping

Our major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead Time

We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export package

Our package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer Service

Top sales with professional skills make you never feel difficult to communicate with afactory,all Ximai staff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.

Production display…………………………………………………………………………………………………………………………. Concrete Pump Pipe Hinge Chain Elbow Product process…………………………………………………………………………………………………………………………………………Product test………………………………………………………………………………………………………………………………………. Concrete Pump Pipe Hinge Chain Elbow
