China Concrete Pump Pipe Pump Parts Straight Pipe for Pm/Schwing factory and manufacturers

Concrete Pump Pipe Pump Parts Straight Pipe for Pm/Schwing

Short Description:

Port:	Tianjin, China
Production Capacity:	500PCS Per Day
Payment Terms:	L/C, T/T, D/P, Western Union

Type:	Seamless
Technique:	Automatic Welding
Material:	M55-5
Surface Treatment:	Varnishing
Usage:	Machinery Industry, Mining, Construction & Decoration
Thickness(mm):	10

Send email to us Download as PDF

Product Detail

Product Tags

Basic Info

Model NO.

M55 DN125 -5"

Length(mm)

1000~6000 or Customized

Flange Tape

Sk, HD, Zx, FM Flange Ends

Test Pressure

360bar

Surface Coating

Baking Paint

Length Deviation

+-1mm

Theoretical Weight(Lbs/Kg)

70/32

Weld Tensile Strength

>480bar

Color

Red Black White or Customized

Trademark

Ximai

Transport Package

Standard Export Package

Specification

M55 LINE PUMP PIPE DN125 -5"

Origin

China

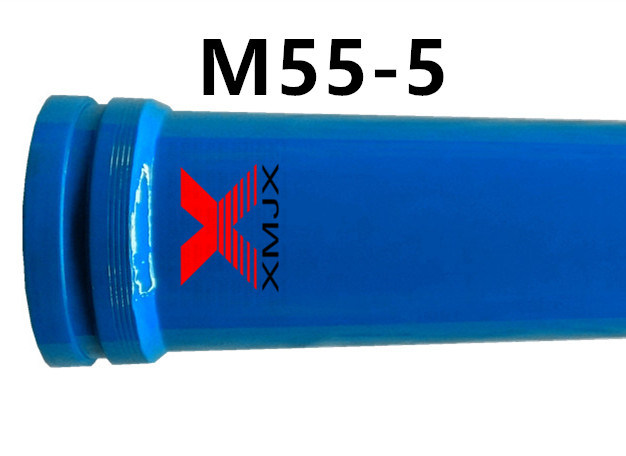

*M55-5*
PRODUCT FEATURES
M55 LINE PUMP PIPE DN125 -5"			With SK, HD, ZX, FM Flange Ends
Part Number	Thickness(mm)	Theoretical weight(lbs./kg.)/meter	LengthDeviation	TestPressure	WeldTensileStrength	SurfaceCoating
M55-540	4.0	28/12.7	±1mm	160bar	>480bar	Painting
M55-545	4.5	31.5/14.3	±1mm	180bar	>480bar	Painting
M55-550	5.0	35/15.8	±1mm	250bar	>480bar	Painting
M55-560	6.0	44/19.8	±1mm	280bar	>480bar	Painting
M55-565	6.5	47/21.4	±1mm	280bar	>480bar	Painting
M55-571	7.1	51/23.3	±1mm	360bar	>480bar	Painting
M55-591	9.1	65/29.4	±1mm	360bar	>480bar	Painting
M55-5100	10.0	70/32	±1mm	360bar	>480bar	Painting
M55-5120	12.0	84/38	±1mm	360bar	-	Primer
Length=1000mmLength=2000mmLength=3000mmLength=3048mm(Length=120 inch, Length=10 feet)Length=4500mmLength=6000mm……..Any length and thickness can be customized.
Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD ENDS

Our service………………………………………………………………………………………………………

High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.Competitive PriceLarge scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop ShoppingOur major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead TimeWe have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export packageOur package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer ServiceTop sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.
