Concrete Pump Spare Parts Pipe for Schwing /Pm
Basic Info
Model NO.
DN125 -5″
Length(mm)
1000~6000 or Customized
Flange Tape
Sk, HD, Zx, FM Flange Ends
Test Pressure
160~360bar
Surface Coating
Baking Paint
Length Deviation
+-1mm
Theoretical Weight(Lbs/Kg)
28/12.7
Weld Tensile Strength
>480bar
Color
Red Black White or Customized
Trademark
Ximai
Transport Package
Standard Export Package
Specification
M55 LINE PUMP PIPE DN125 -5″
Origin
China

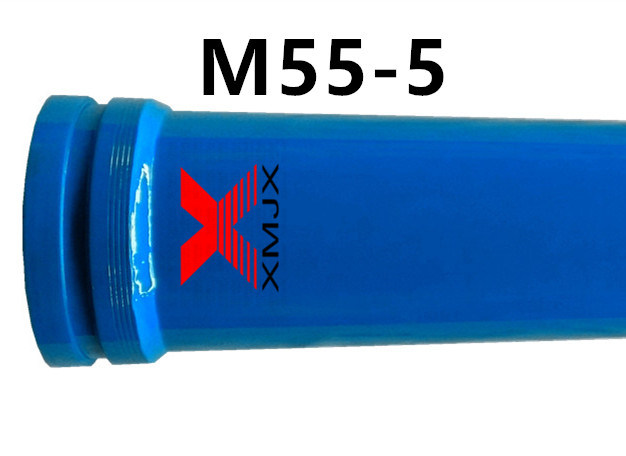

| M55 LINE PUMP PIPE DN125 -5″M55-5 | ||||||
| PRODUCT FEATURES | ||||||
| M55 LINE PUMP PIPE DN125 -5″ | With SK, HD, ZX, FM Flange Ends | |||||
| Part Number | Thickness(mm) | Theoretical weight(lbs./kg.)/meter | LengthDeviation | TestPressure | WeldTensileStrength | SurfaceCoating |
| M55-540 | 4.0 | 28/12.7 | ±1mm | 160bar | >480bar | Painting |
| M55-545 | 4.5 | 31.5/14.3 | ±1mm | 180bar | >480bar | Painting |
| M55-550 | 5.0 | 35/15.8 | ±1mm | 250bar | >480bar | Painting |
| M55-560 | 6.0 | 44/19.8 | ±1mm | 280bar | >480bar | Painting |
| M55-565 | 6.5 | 47/21.4 | ±1mm | 280bar | >480bar | Painting |
| M55-571 | 7.1 | 51/23.3 | ±1mm | 360bar | >480bar | Painting |
| M55-591 | 9.1 | 65/29.4 | ±1mm | 360bar | >480bar | Painting |
| M55-5100 | 10.0 | 70/32 | ±1mm | 360bar | >480bar | Painting |
| M55-5120 | 12.0 | 84/38 | ±1mm | 360bar | - | Primer |
| Length=1000mmLength=2000mmLength=3000mmLength=3048mm(Length=120 inch, Length=10 feet)Length=4500mmLength=6000mm……..Any length and thickness can be customized. | ||||||
| Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD EN | ||||||
Ourservice.……………………………………………………………………………………………………………………………………….
High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.Competitive PriceLarge scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop ShoppingOur major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead TimeWe have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export packageOur package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer ServiceTop sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.
