China Concrete Pump Spare Parts Rubber Hose factory and manufacturers

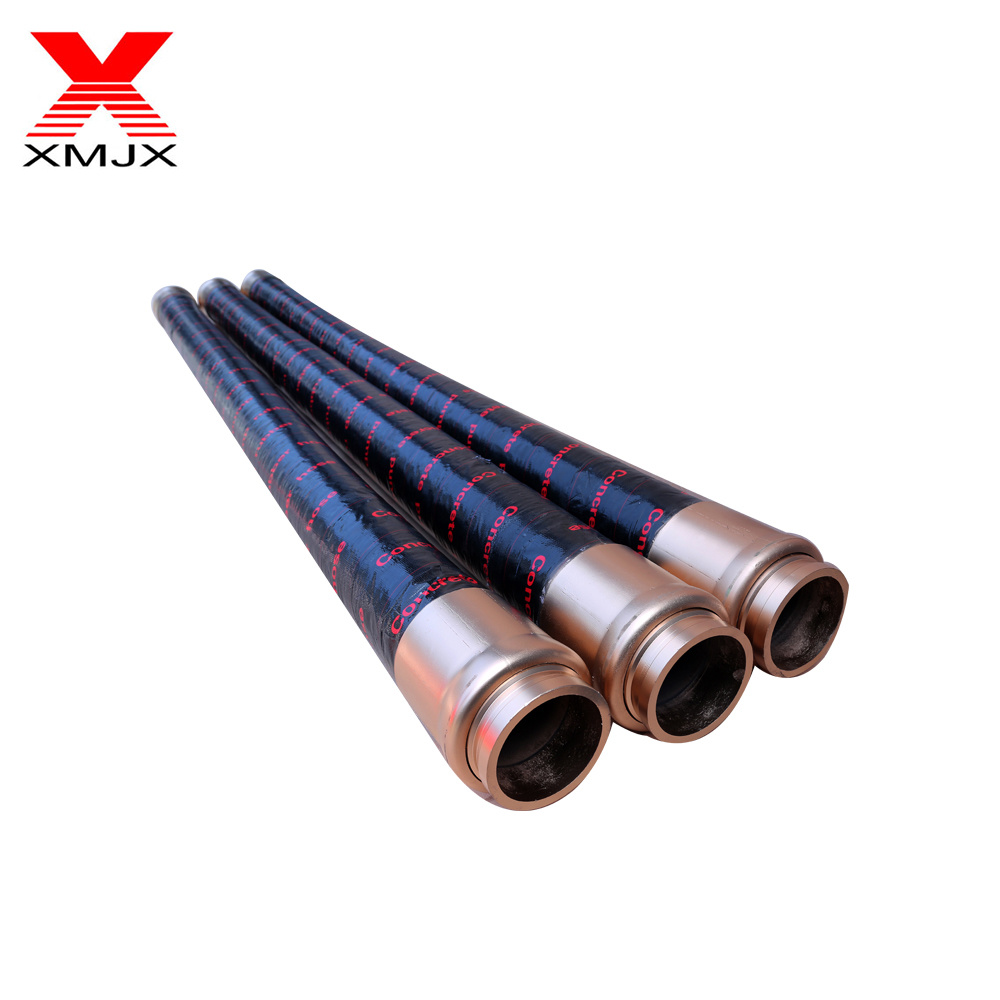

Concrete Pump Spare Parts Rubber Hose

Short Description:

Port:	Tianjin, China
Production Capacity:	500PCS/Per Day
Payment Terms:	L/C, T/T, D/P, Western Union, Paypal, Money Gram

Type:	Wire Braid Rubber Hose
Application:	Concrete Pump
Certification:	CE, ISO9001: 2000
Condition:	New
Model Number:	DN125
Working Pressure:	85bar

Send email to us Download as PDF

Product Detail

Product Tags

Basic Info

Burst Pressure

220bar

Wire Braid Hose Size

2″-5″

Ply

4-Ply Wire Braided etc

Life

15000-20000 Cbm

Length

3–10m or Other Length

Color

as Clients′s Required

Material

Natural Rubber and Steel Wire

Trademark

Ximai

Transport Package

Standard Export Package

Specification

5″X85bar 4-layer wire 148mmSk

Origin

China

HS Code

841391

Product description………………………………………………………………………………………

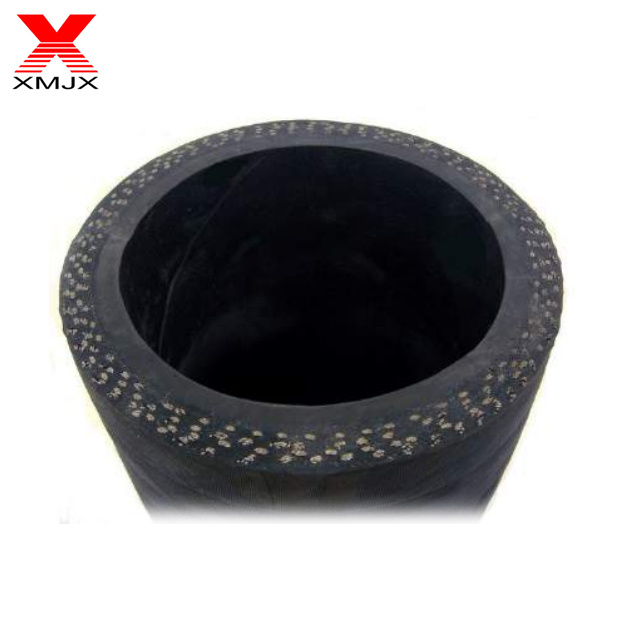

High quality rubber hose

Specifications

Size	Inner Diameter	Wall Thickness Tolerance	Outer Diameter	Working Pressure	Burstiong Pressure	Bend Radius	Weight
2″	50.0 mm	9.0±0.75 mm	68±1.50 mm	85 bar	240 bar	200 mm	2.60 kg/m
2.5″	64.0 mm	10.0±0.75 mm	85±1.50 mm	85 bar	240 bar	250 mm	4.30 kg/m
3″	76.2 mm	12.9±1.00 mm	102±1.50 mm	85 bar	240 bar	270 mm	6.10 kg/m
3.5″	89.0 mm	13.5±1.00 mm	116±1.50 mm	85 bar	240 bar	290 mm	8.00 kg/m
4″	101.6 mm	14.2±1.00 mm	130±1.75 mm	85 bar	240 bar	300 mm	9.00 kg/m
4.5″	115.0 mm	14.0±1.00 mm	143±2.00 mm	85 bar	240 bar	320 mm	10.20 kg/m
5″	127.0 mm	16.0±1.00 mm	158±2.00 mm	85 bar	240 bar	360 mm	12.50 kg/m
6″	150.0 mm	18.0±1.00 mm	168±2.00 mm	85 bar	240 bar	570 mm	14.85 kg/m

1.application:used for high-rise buildings, highway, tunnel, water conservancy project ,nuclear power station and so on construction machinery ,concrete pump delivery concrete.2. product structure: inner layer rubber, enhancement layer, outside layer rubber(1) inner layer rubber:polyurethane and butyl rubber are the mainly material, and put in special reinforced material to make mixed rubber .its colour is black and transparent. With high wear resistance, high toughness, high pressure, smooth, and so on.The friction resistance of concrete Wipe, tube has the pressure transmission mmedium, wire protection from erosion effect.(2) enhancement layer:4 layer of steel wire wound, the use of copper wire braided hose, bearing the work pressure is the ordinary hose 3-4 Times, with ahigh degree of resistance, flex features superior performance, enhancing effect.(3) outside layer rubber:Black, smooth (wrapped), SBR/NR compound, anti aging, wear resistance.[material ]natural rubber and steel wireOur service……………………………………………………………………………………………………..

High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.

Competitive Price

Large scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop Shopping

Our major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead Time

We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export package

Our package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer Service

Top sales with professional skills make you never feel difficult to communicate with afactory,all Ximai staff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.

Production display………………………………………………………………………………… Concrete Pump Spare Parts Rubber Hose Product process…………………………………………………………………………………………………………………………………………

Concrete Pump Spare Parts Rubber Hose Product test……………………………………………………………………………………………………………………………………….Packaging&Shipping………………………………………………………………………………………………………………………………. Concrete Pump Spare Parts Rubber Hose FAQ……………………………………………………………………………………………………………………………………………………………….
