Concrete Pump Tube Pipe for Pm/Schwing/Sany /Junjin
Basic Info
Model NO.
Dn50 St52
Thickness
4.0mm
Length Deviation
+-1mm
Length(in/mm)
120″/3048mm or Customized
Theoretical Weight (Lbs./Kg.)/Meter
12.2/5.5
Flange Tape
Sk HD Zx FM
Weld Tensile Strength
>360bar
Test Pressure
160bar
Color
Red Black White or Customized
Surface Coating
Baking Paint
Trademark
Ximai
Transport Package
Standard Export Package
Specification
DN50/2″
Origin
China
HS Code
841391
Product description

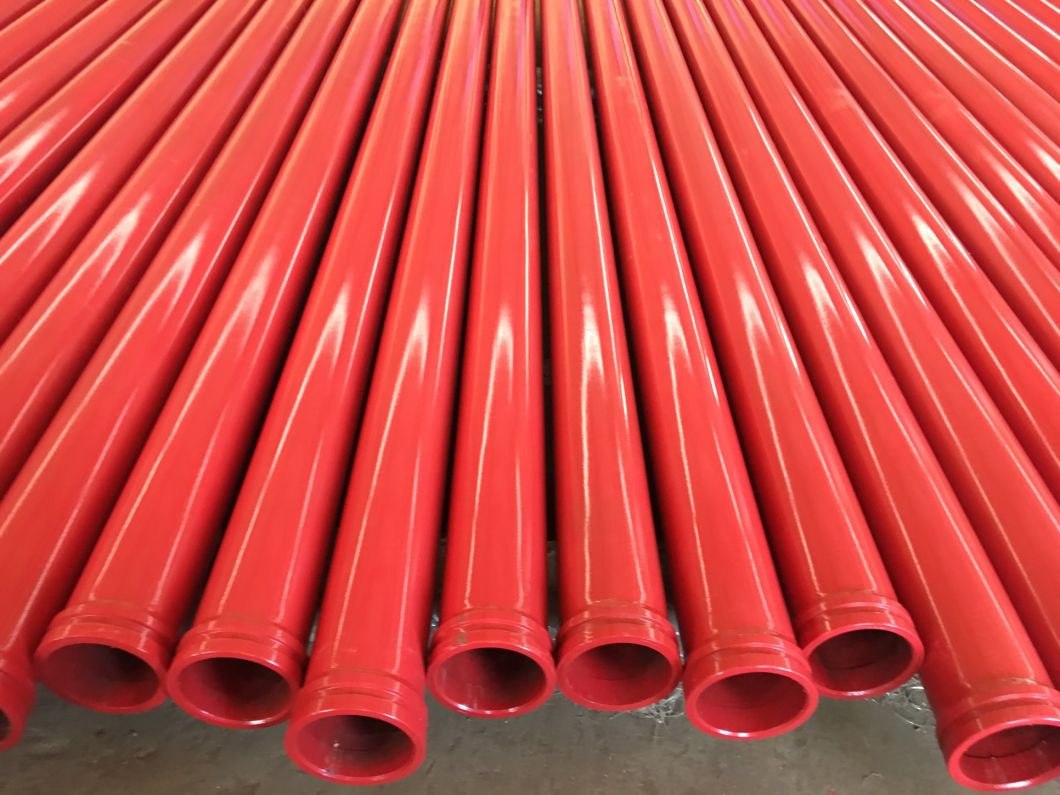

High quality ST52 concrete pump pipes
| LINEPUMPPIPEDN50-2″ | WithSK,HD,ZX,FMFlangeEnds | |||||
| PartNumber | Thickness(mm) | Theoreticalweight(lbs./kg.)/meter | LengthDeviation | TestPressure | WeldTensileStrength | SurfaceCoating |
| ST52-230 | 3.0 | 9.3/4.2 | ±1mm | 160bar | >360bar | Painting |
| ST52-235 | 3.5 | 10.8/4.8 | ±1mm | 180bar | >360bar | Painting |
| ST52-240 | 4.0 | 12.2/5.5 | ±1mm | 160bar | >480bar | Painting |
| ST52-245 | 4.5 | 13.5/6.2 | ±1mm | 180bar | >480bar | Painting |
| ST52-250 | 5.0 | 15/6.8 | ±1mm | 250bar | >480bar | Painting |
| Length=1000mmLength=2000mmLength=3000mmLength=3048mm(Length=120inch,Length=10feet)Length=4500mmLength=6000mm……..Anylengthandthicknesscanbecustomized. | ||||||

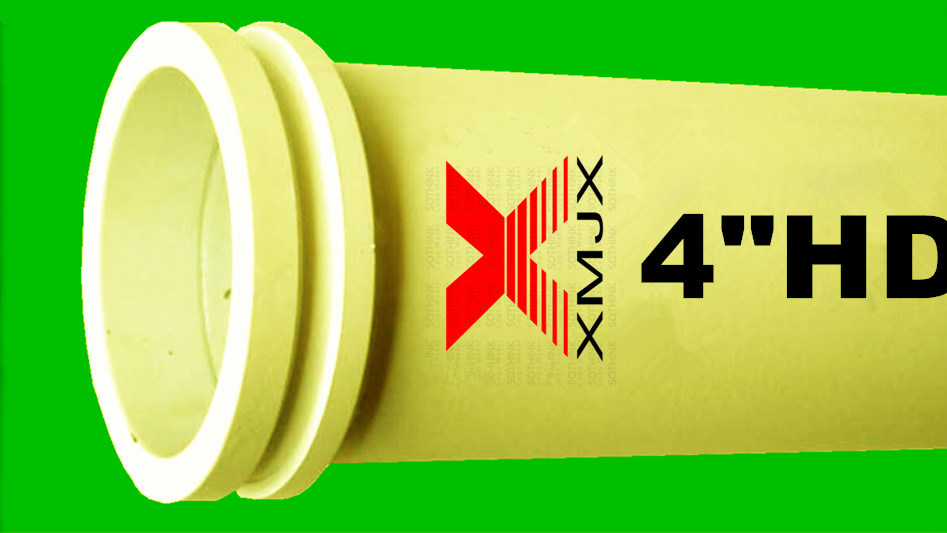

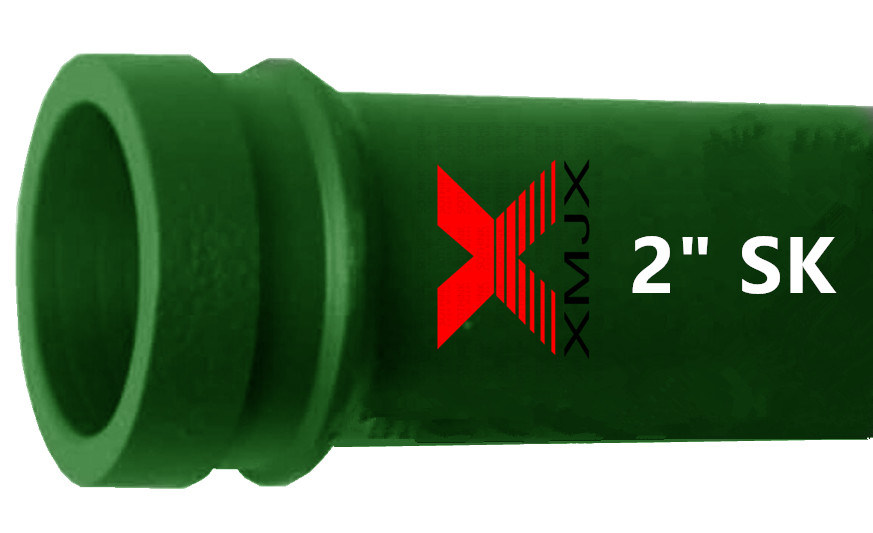

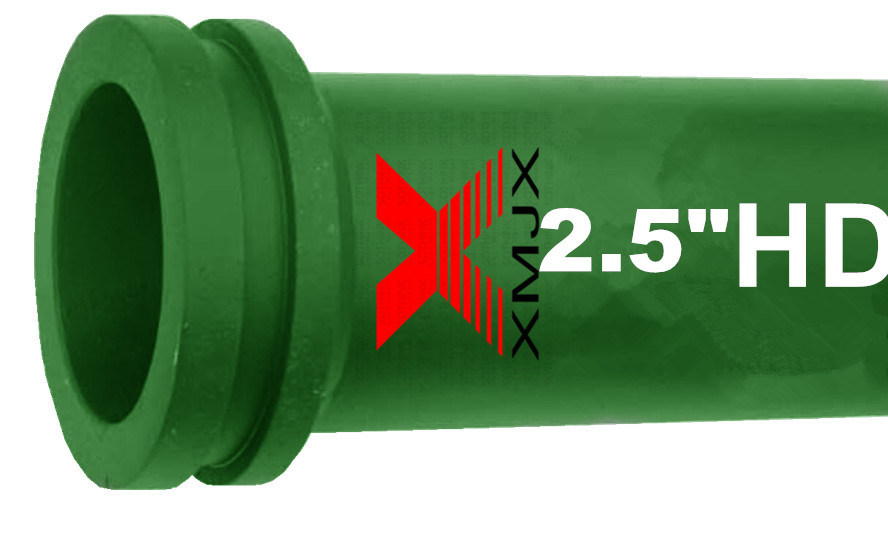

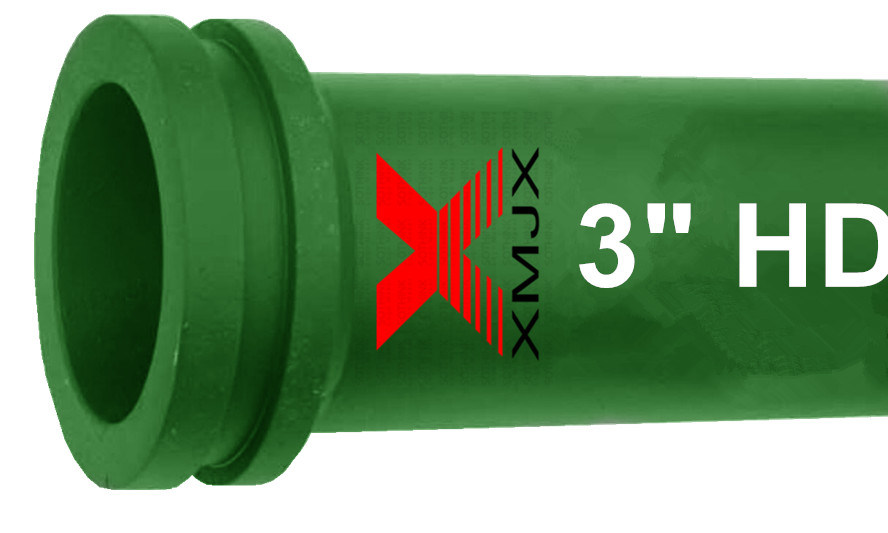

| Anytypesofweldendsareavailable.METRIC(SK)WELDENDSHEAVYDUTYWELDENDSSCHWINGF/MWELDENDSPUTZMEISTERZ/XWELDENDS | ||||||
1.We are a professional manufacturer of concrete pump pipes in China.Our products include concrete delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.
2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.
3.The HRC of it’s inner wall can reach 60~68 and the serving life of it can increase 3~5 times.
4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has a high wear-resistant.
5.OEM available from us.
