Concrete Pump Twin Wall Pipe for Putzmeister/Schwing/Kcp/Sany
Basic Info
Model NO.
DN117 4.0mm (2.5m + 1.5mm)
Length(mm)
1000~6000 or Customized
Hardened Process
UHF Quenching (400kHz)
Flange Tape
with 148mm Chrome Alloy Liner Weld Ends
Test Pressure
130bar
Surface Coating
Baking Paint
Length Deviation
+-1mm
Hardeness
up to 68HRC
Theoretical Weight(Lbs/Kg)
49/15
Weld Tensile Strength
>480bar
Color
Red Black White or Customized
Trademark
Ximai
Transport Package
Standard Export Package
Specification
TWIN WALL BOOM PIPE DN117 4.0mm (2.5m + 1.5mm)
Origin
China

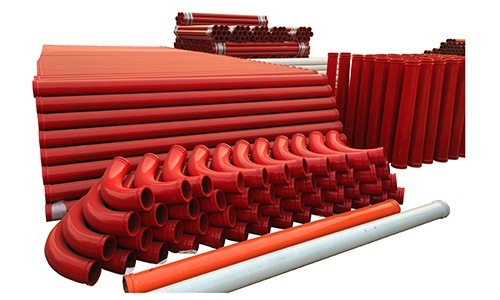

Factory directly supply High quality concrete pump twin pipe
| TW117-400 | ||||||||
| PRODUCT FEATURES | ||||||||
| TWIN WALL BOOM PIPE DN117 4.0mm (2.5m + 1.5mm) | with 148mm chrome alloy liner weld ends | |||||||
| Part Number | Length(in/mm) | Theoretical weight(lbs./kg.) | HardenedProcess | HardnessHRC | LengthDeviation | TestPressure | WeldTensileStrength | SurfaceCoating |
| TW117-400L1M | 39.37/1000 | 49/15 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 130bar | >480bar | Baking paint |
| TW117-400L2M | 78.75/2000 | 95/26 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 130bar | >480bar | Baking paint |
| TW117-400L3M | 118.12/3000 | 144/39 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 130bar | >480bar | Baking paint |
| TW117-400L4M | 157.48/4000 | 192/48 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 130bar | >480bar | Baking paint |
| TW117-400L6M | 236.22/6000 | 288/72 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 130bar | - | Primer |
Our service………………………………………………………………………………………………………………………………………..
High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.Competitive PriceLarge scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop ShoppingOur major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead TimeWe have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export packageOur package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer ServiceTop sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.
