Factory best selling Parts For Trucks - Customized Color for Concrete Pump Elbow – Ximai

Short Description:

Product Detail

Product Tags

Feedback (2)

Our business puts emphasis over the administration, the introduction of talented staff, plus the construction of employees building, striving hard to boost the standard and liability consciousness of staff members. Our corporation successfully attained IS9001 Certification and European CE Certification of PM piston, Con Form, Rubber gasket, We welcome shoppers, enterprise associations and buddies from all areas of your environment to speak to us and request cooperation for mutual gains.

Factory best selling Parts For Trucks - Customized Color for Concrete Pump Elbow – Ximai Detail:

Basic Info

Hardeness

up to 68HRC

Structure

Compound Structure

Material

20# St52 Mn13-4 70mn Gx350

Damping Layer

Polymer Damping Layer

Thickness(Back Arc+Arc)

>13+8mm

Hardened Process

UHF Quenching (400kHz)

Theoretical Weight(Lbs/Kg)

30.4/13.8

Flange Tape

Sk148 HD157 Zx175 FM175

Weld Tensile Strength

>580bar

Test Pressure

160bar

Color

Red Black White or Customized

Surface Coating

Baking Paint

Manufacture Process

Pushed/Quenched/Automatic Welding

Trademark

Ximai

Transport Package

Standard Export Package

Specification

DN117 R275 90 degree

Origin

China

HS Code

841391

Product description…………………………………………………………………………………………………………………………………….

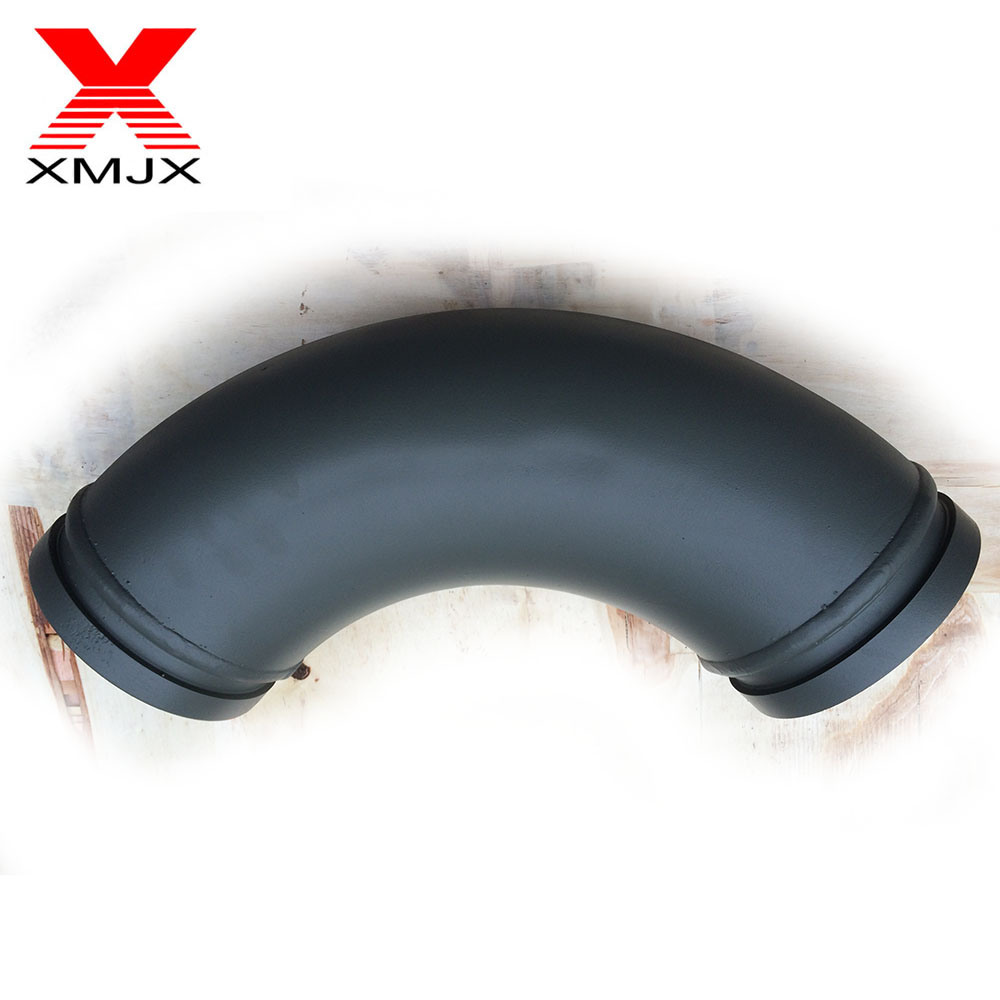

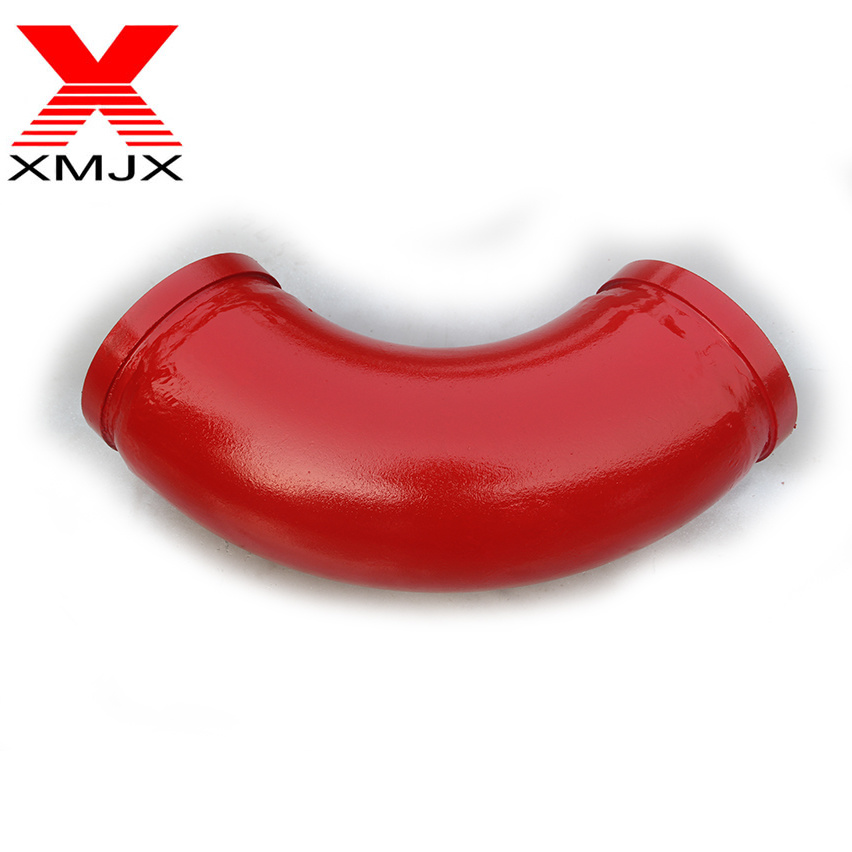

High quality twin wall elbow

TWIN WALL ELBOW ID117 R275 90°
CAST CHROME CARBIDE LINER+POLYMER DAMPING LAYER+ST52 SHELL
Part Number	Specification	Weightlbs/kgs	Liner Hardness	Dimension Tolerance	Pressure	Weld tensile strength	Surface coating
TWBE11790	ID117 R275 90°	30.4/13.8	Up to 62-65HRC	<1mm<1°	160bar	>580bar	Baking paint
All boom elbows and deck elbow for PM, SCHWING, CIAF, JUNJIN,KCP etc are available

Advantages

The twin-layer structure ensures high abrasion resistance and toughness

Chromium alloy iron casting enables the liner highly wear proof and reduce pressure

Seamless welding enables the the outer layer hard to explode

Light weight improves vehicle efficiency, highly reduces labor and cost and the time for replacement

Designed structure, material and process realize its 3-5 times service life of common products

to extend the service life of other pipe fitting

Easy to use and handle

Our service………………………………………………………………………………………………………………………………………..

High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.

Competitive Price

Large scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop Shopping

Our major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead Time

We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export package

Our package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer Service

Top sales with professional skills make you never feel difficult to communicate with afactory,all Ximai staff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.

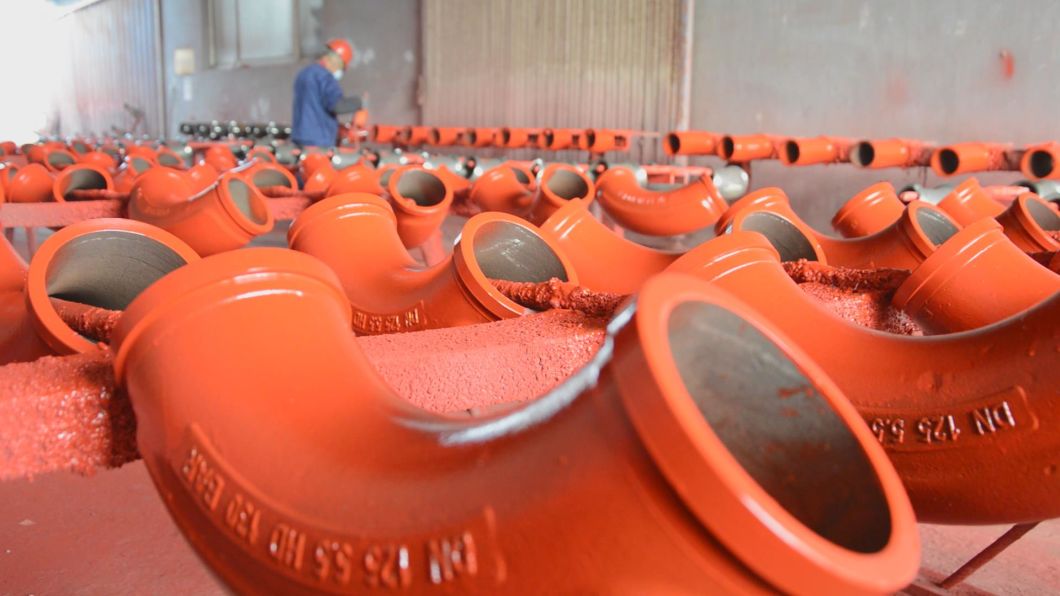

Production display…………………………………………………………………………………………………………………………. Customized Color for Concrete Pump Elbow Product process…………………………………………………………………………………………………………………………………………
