Hebei Ximai Machinery Concrete Pump Boom Placer
Basic Info
Vibrating Amplitude
1.4mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Red or Customized
Weight
1200kgs
Trademark
XIMAI
Transport Package
Standard Export Packing
Specification
12m/15m/18m /20m(manual/electric)
Origin
China

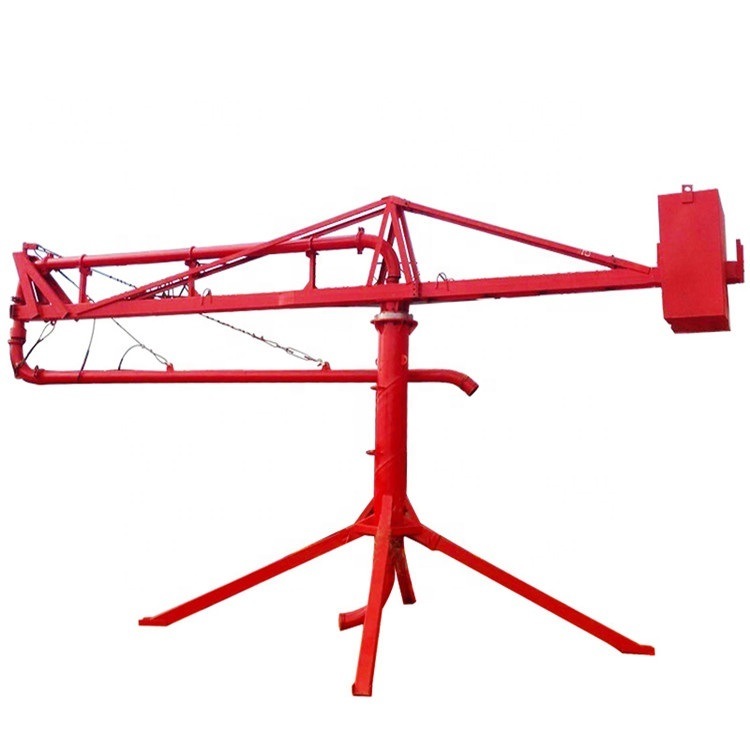

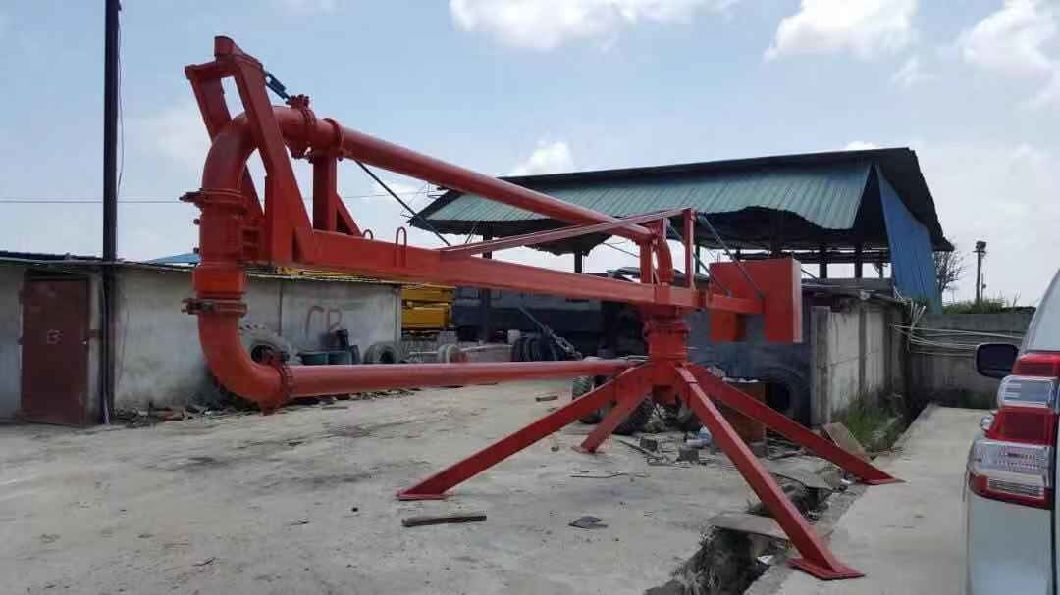

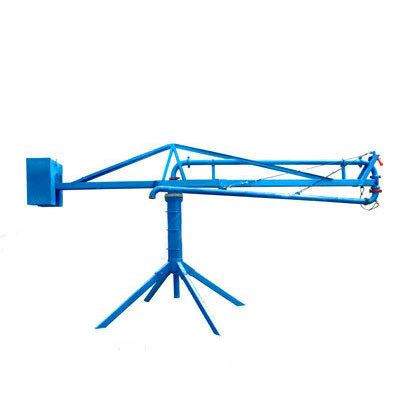

Concrete pouring machine boom placer
Model |
12M |
15M |
18M |
Rotation mode |
Manual |
Manual |
Manual |
Max Turning radius |
12m |
15m |
18m |
Jib turning radius |
6m |
7.5m |
9m |
the height of placing boom |
4m |
4m |
4m |
placing area |
452m*m |
700m*m |
1017m*m |
Landingleg max span |
3.2m×3.2m |
4m×4m |
4m×4m |
Self weight |
1100kg |
1400kg |
1900kg |
Counterweight(self-provide) |
1200kg |
1500kg |
20000kg |
Main Features:
1.It can be placed in suitable places required without being fixed.
2.It features compact structure ,light weight and can be lifted as awhole by acrane.
3.With excellent maneuverability,it can meet the requirements for concrete placement on different jobsite ,and is idealfor concrete pumping and placing.
4.Easy operation,reliable safety and economical purchase.
5.It can be drived by people and are flexibility.
