High Performance Concrete Pump Wear Plate - China Factory Supply Concrete Pump Pipe for Pm/Schwing /Sany – Ximai Detail:
Basic Info
Model NO.
DN125 5.1mm
Wall Thinkness(Shell+Inner)
1.85+3.25mm
Length Deviation
+-1mm
Length(in/mm)
118.12/3000 or Customized
Hardeness
up to 68HRC
Hardened Process
UHF Quenching (400kHz)
Theoretical Weight(Lbs/Kg)
104.5/47.4
Flange Tape
Sk148 HD157 Zx175 FM175
Weld Tensile Strength
>480bar
Test Pressure
170bar
Color
Red Black White or Customized
Surface Coating
Baking Paint
Trademark
Ximai
Transport Package
Standard Export Package
Specification
DN125/5"
Origin
China
HS Code
841391
Product description

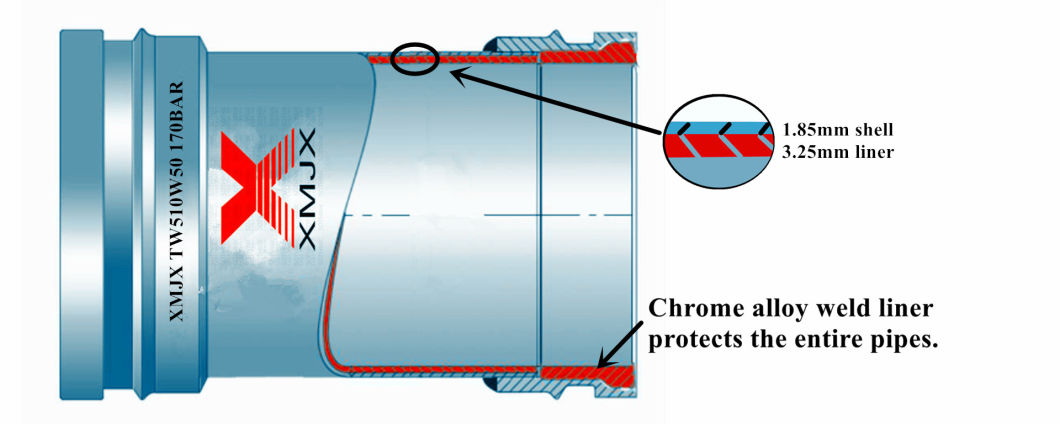

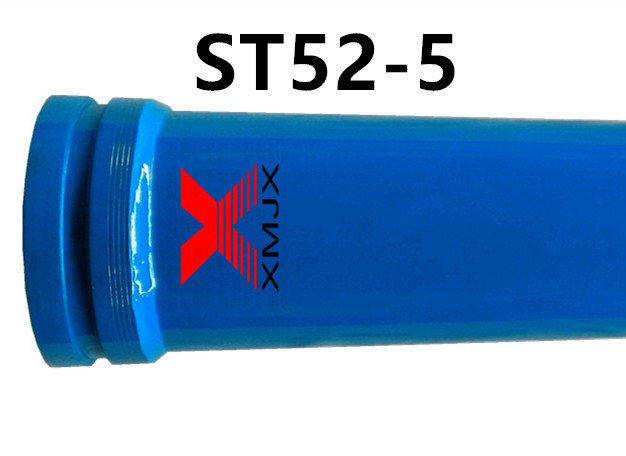

High quality twin wall concrete pump pipes
| TWIN WALL BOOM PIPE DN125 5.1mm (3.25m + 1.85mm) | with 148mm chrome alloy liner weld ends | |||||||
| Part Number | Length(in/mm) | Theoretical weight(lbs./kg.) | HardenedProcess | HardnessHRC | LengthDeviation | TestPressure | WeldTensileStrength | SurfaceCoating |
| TW510W50L1M | 39.37/1000 | 37/16.8 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 170bar | >480bar | Baking paint |
| TW510W50L2M | 78.75/2000 | 70/31.6 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 170bar | >480bar | Baking paint |
| TW510W50L3M | 118.12/3000 | 104.5/47.4 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 170bar | >480bar | Baking paint |
| TW510W50L4M | 157.48/4000 | 139/63.2 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 170bar | >480bar | Baking paint |
| TW510W50L6M | 236.22/6000 | 209/94.8 | UHF Quenching(400KHz) | UP to 68 | ±1mm | 170bar | - | Primer |
| Any length can be customized,please consult us. | ||||||||
1.We are a professional manufacturer of concrete pump pipes in China.Our products include delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.
2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.
3.The HRC of it’s inner wall can reach 60~68 degrees and the serving life of it can increase 3~5 times.
4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has a high wear-resistant.
5.OEM available from us.Production display

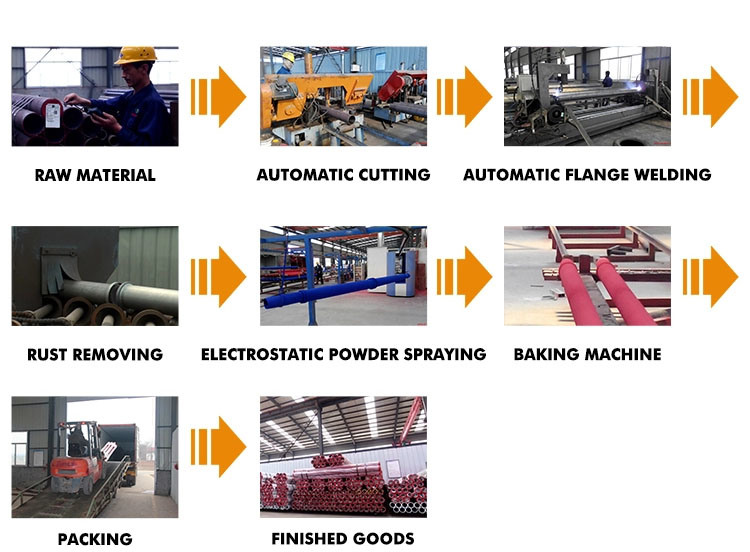

Product process

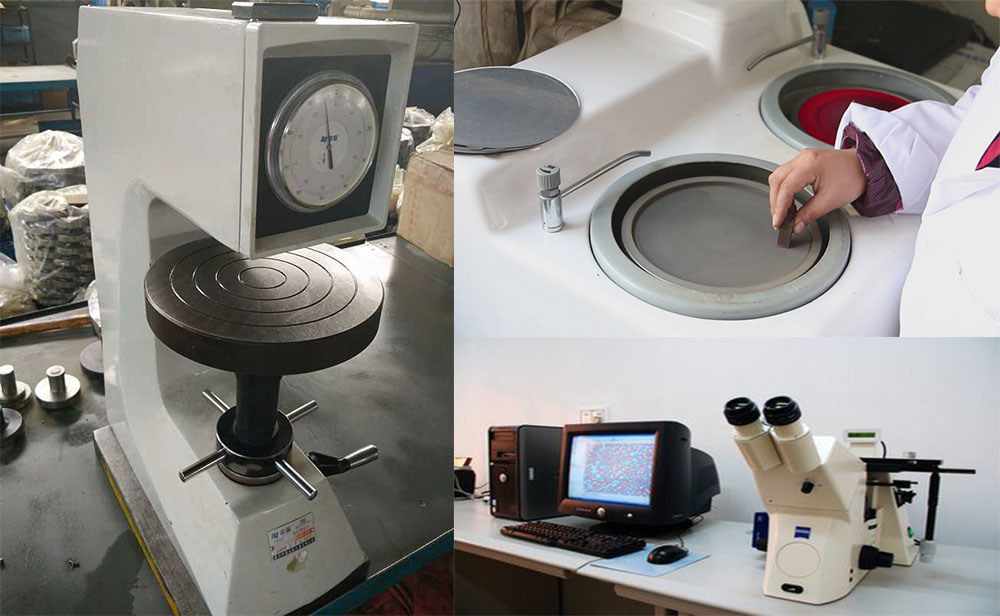

Product test

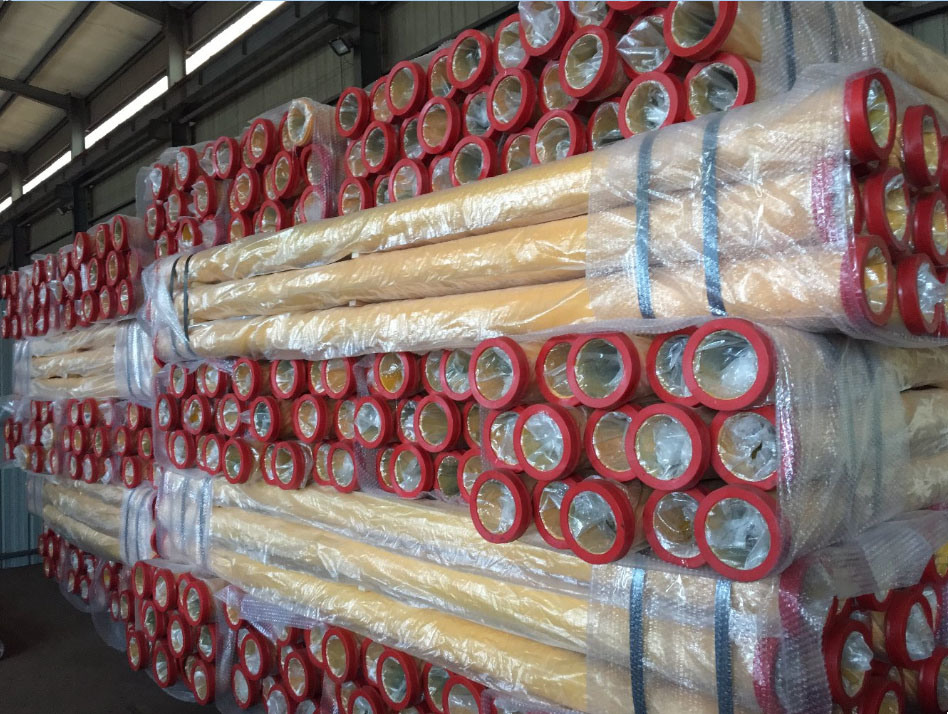

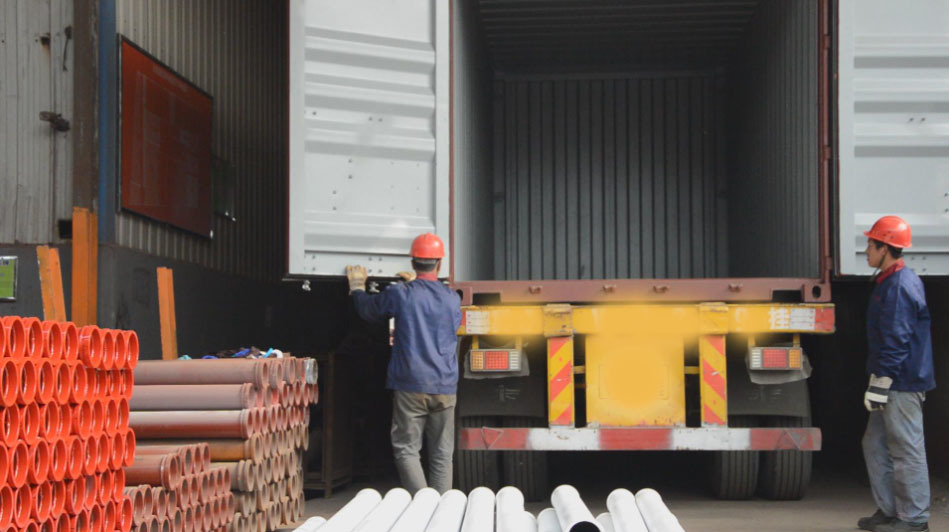

Packaging&Shipping
Contact us
Product detail pictures:
