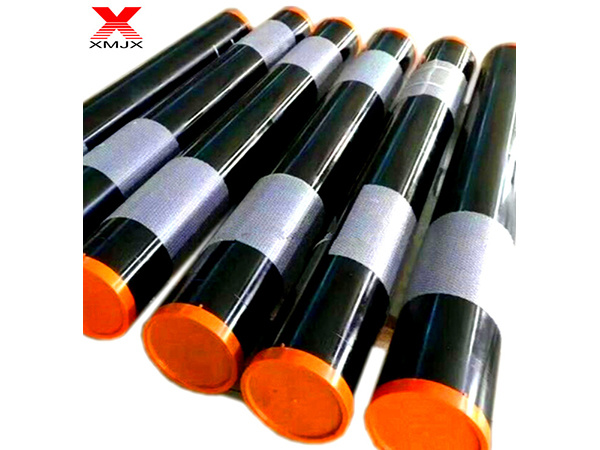

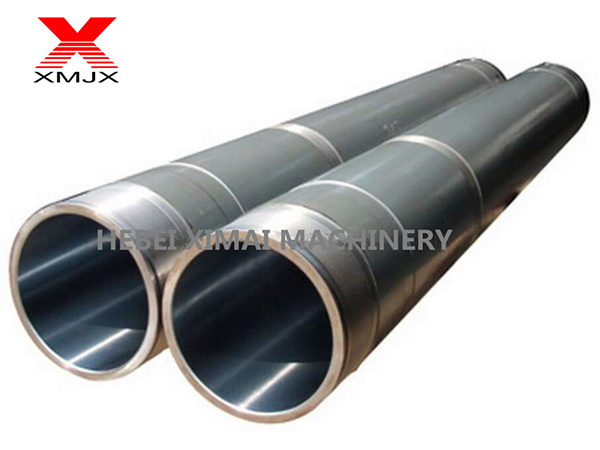

Hot Sale Schwing Putzmeister Converying Concrete Pump Delivery Cylinder
Basic Info
Model NO.
DN200/DN230/DN250
Inner Layer Hardness
up to HRC67
Length Deviation
+/-1mm
Test Pressure
280bar
Weld Tensile Strength
480bar
Surface Coating
Baking Paint
Theoretical Weight (Lbs./Kg.)
101/46
Hardened Process
UHF Quenching (400kHz)
Trademark
XIMAI
Transport Package
Waterproof Packaging + Flange Sheath + Bundling
Specification
DN200/DN250/DN230/DN280
Origin
China
HS Code
8413910000
PM/SCHWING /SANY/ZOOMLIONPump Cylinder
| Putzmeister | |||
| Outer Diameter(mm) | Inner Diameter(mm) | length(mm) | Travel(mm) |
| 305 | 280 | 2355 | 2200 |
| 278 | 250 | 2710 | 2500 |
| 278 | 250 | 2310 | 2100 |
| 254 | 230 | 2320 | 2100 |
| 254 | 230 | 1600 | 1400 |
| 219 | 200 | 2305 | 2100 |
| 219 | 200 | 1585 | 1400 |
| 203 | 180 | 2305 | 2100 |
| Schwing | |||
| Outer Diameter(mm) | Inner Diameter(mm) | length(mm) | Travel(mm) |
| 270 | 250 | 2635 | 2500 |
| 270 | 250 | 2135 | 2000 |
| 251 | 230 | 2125 | 2000 |
| 251 | 230 | 2133 | 2000 |
| 253 | 230 | 1175 | 1000 |
| 219 | 200 | 2125 | 2000 |
| 219 | 200 | 1775 | 1600 |
| 210 | 180 | 2125 | 2000 |
| 203 | 180 | 2125 | 2000 |
| 202 | 180 | 1775 | 1600 |
| 200 | 180 | 1520 | 1400 |
| 196 | 180 | 1320 | 1200 |
| 200 | 180 | 1175 | 1000 |
| Sany | |||
| Outer Diameter(mm) | Inner Diameter(mm) | length(mm) | Travel(mm) |
| 280 | 260 | 2345 | 2200 |
| 280 | 260 | 2245 | 2100 |
| 280 | 260 | 2145 | 2000 |
| 280 | 260 | 2045 | 1900 |
| 258 | 230 | 2146 | 2000 |
| 258 | 230 | 1946 | 1800 |
| 258 | 230 | 1746 | 1600 |
| 226 | 200 | 1946 | 1800 |
| 226 | 200 | 1746 | 1600 |
| 226 | 200 | 1546 | 1400 |
| Zoomlion | |||
| Outer Diameter(mm) | Inner Diameter(mm) | length(mm) | Travel(mm) |
| 280 | 260 | 2250 | 2100 |
| 250 | 230 | 2250 | 2100 |
| 258 | 230 | 1800 | 1600 |
| 219 | 200 | 1960 | 1800 |
| 219 | 200 | 1800 | 1600 |
| 219 | 200 | 1587 | 1400 |
