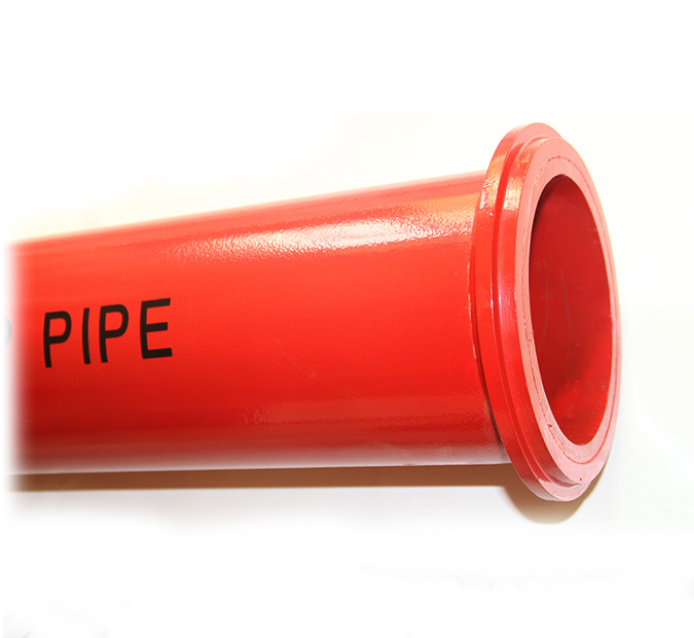

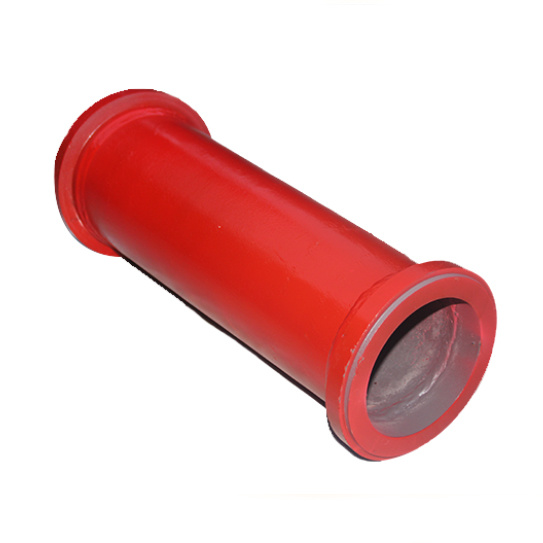

Hot Sales 5′′ Concrete Pump Parts Pipe with Zx Flange
Basic Info
Model NO.
M16 LINE PUMP PIPE DN125 -5″
Surface Coating
Baking Paint
Length Deviation
+-1mm
Theoretical Weight(Lbs/Kg)
28/12.7
Weld Tensile Strength
More Than 480bar
Color
Red Black White or Customized
Trademark
Ximai
Transport Package
Standard Export Packing
Specification
M16 LINE PUMP PIPE DN125 -5″
Origin
China
| PRODUCT FEATURES | ||||||
| M16 LINE PUMPPIPE DN125 -5″ | With SK, HD, ZX, FMFlange Ends | |||||
| Part Number | Thickness(mm) | Theoretical weight(lbs./kg.)/meter | LengthDeviation | TestPressure | WeldTensileStrength | SurfaceCoating |
| M16-540 | 4.0 | 28/12.7 | ±1mm | 160bar | >480bar | Painting |
| M16-545 | 4.5 | 31.5/14.3 | ±1mm | 180bar | >480bar | Painting |
| M16-550 | 5.0 | 35/15.8 | ±1mm | 250bar | >480bar | Painting |
| M16-560 | 6.0 | 44/19.8 | ±1mm | 280bar | >480bar | Painting |
| M16-565 | 6.5 | 47/21.4 | ±1mm | 280bar | >480bar | Painting |
| M16-571 | 7.1 | 51/23.3 | ±1mm | 360bar | >480bar | Painting |
| M16-591 | 9.1 | 65/29.4 | ±1mm | 360bar | >480bar | Painting |
| M16-5100 | 10.0 | 70/32 | ±1mm | 360bar | >480bar | Painting |
| M16-5120 | 12.0 | 84/38 | ±1mm | 360bar | - | Primer |
| Length=1000mmLength=2000mmLength=3000mmLength=3048mm(Length=120 inch, Length=10 feet)Length=4500mmLength=6000mm……..Any length and thickness can be customized. | ||||||
| Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD ENDS | ||||||
1.We are aprofessional manufacturer of concrete pump pipes in China.Our products include concrete delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.3.The HRC of it’s inner wall can reach 60~68 and the serving life of it can increase 3~5 times.4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has ahigh wear-resistant.5.OEM available from us.
