Putzmeister Concrete Boom Pump Parts Twin Wall Pipe

Short Description:

Port:	Tianjin, China
Production Capacity:	500PCS/Per Day
Payment Terms:	L/C, T/T, D/P, Western Union, Paypal, Money Gram

Compound Material:	Compound Bimetallic Structure
Material:	St52 + W12-8
Installation and Connection:	Clamping Type Installation
Technology of Plastic Composite Pipe:	Hot Dip
Base Pipe of Plastic Composite Pipe:	Welded Steel Pipe
Internal Coating Materials of Plastic Composite Pipe:	Inner W12-8 Outside St52

Send email to us Download as PDF

Product Detail

Product Tags

Basic Info

Model NO.

DN125; 4.85mm (3.25m + 1.6mm)

Plastic Composite Pipe Coating Form

Outside Coating

Plastic Composite Pipe Model

St52 + W12-8

Thickness

4.85mm

Wall Thickness

1.65+3.2mm

Length Deviation

+-1mm

Length(in/mm)

157.48/4000t or Customized

Hardeness

up to 68HRC

Hardened Process

UHF Quenching (400kHz)

Theoretical Weight(Lbs/Kg)

135/61

Flange Tape

Sk148 HD157 Zx175 FM175

Weld Tensile Strength

>480bar

Test Pressure

>170bar

Color

Red Black White or Customized

Surface Coating

Baking Paint

Trademark

Ximai

Transport Package

Standard Export Package

Specification

DN125/5"

Origin

China

HS Code

841391

Product description

High quality twin wall concrete pump pipes

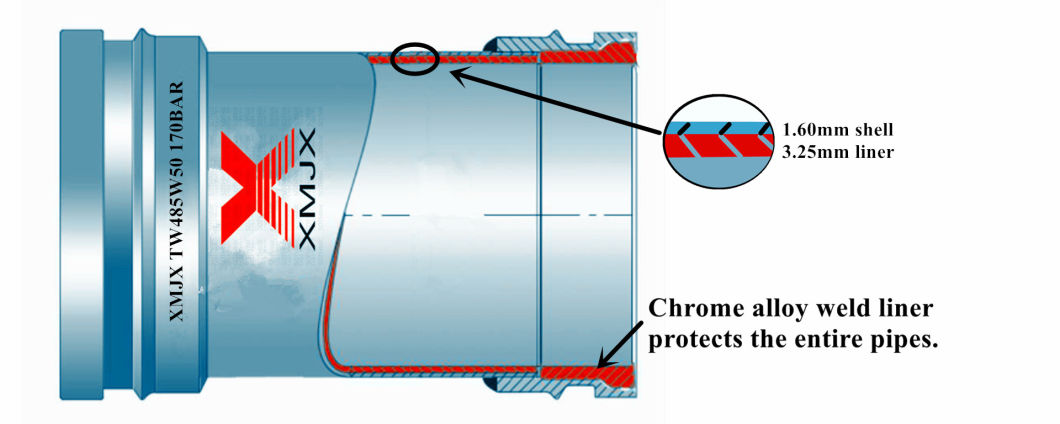

TWIN WALL BOOM PIPE DN125 4.85mm (3.25m + 1.6mm)					with 148mm chrome alloy liner weld ends
Part Number	Length(in/mm)	Theoretical weight(lbs./kg.)	HardenedProcess	HardnessHRC	LengthDeviation	TestPressure	WeldTensileStrength	SurfaceCoating
TW485W50L1M	39.37/1000	36/15	UHF Quenching(400KHz)	UP to 68	±1mm	170bar	>480bar	Baking paint
TW485W50L2M	78.75/2000	71/31	UHF Quenching(400KHz)	UP to 68	±1mm	170bar	>480bar	Baking paint
TW485W50L3M	118.12/3000	101/46	UHF Quenching(400KHz)	UP to 68	±1mm	170bar	>480bar	Baking paint
TW485W50L4M	157.48/4000	135/61	UHF Quenching(400KHz)	UP to 68	±1mm	170bar	>480bar	Baking paint
TW485W50L6M	236.22/6000	202/92	UHF Quenching(400KHz)	UP to 68	±1mm	170bar	-	Primer
Any length can be customized,please consult us.

1.We are a professional manufacturer of concrete pump pipes in China.Our products include delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.

2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.

3.The HRC of it’s inner wall can reach 60~68 degrees and the serving life of it can increase 3~5 times.

4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has a high wear-resistant.

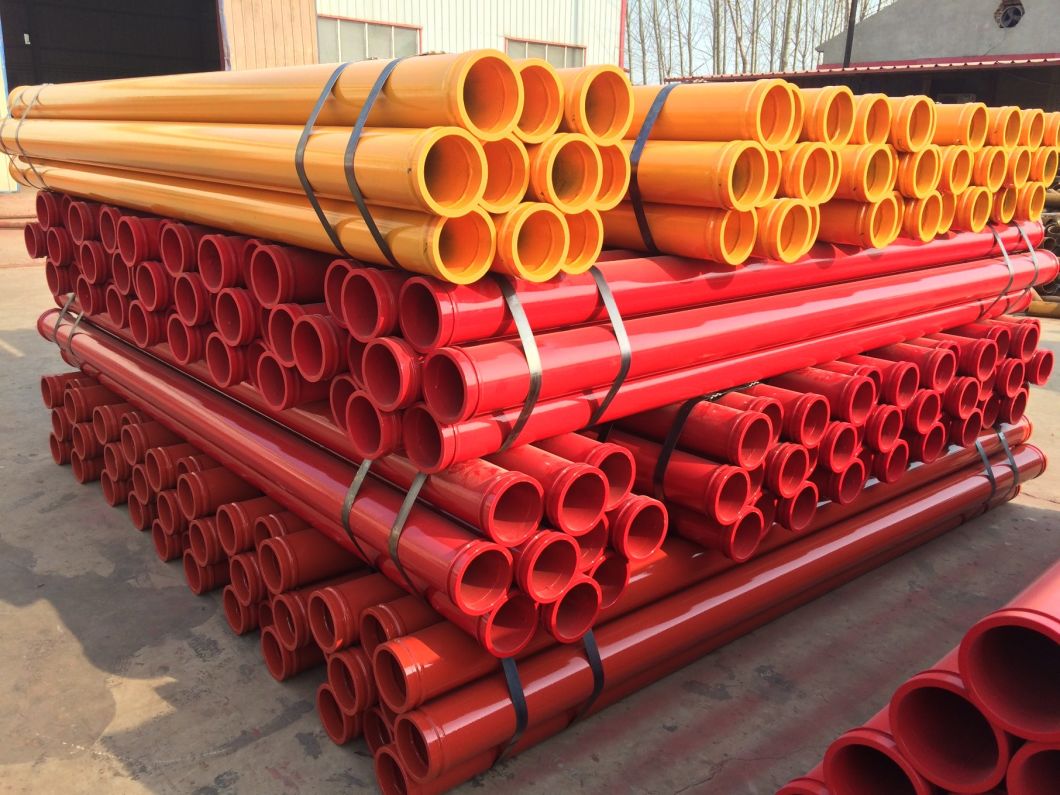

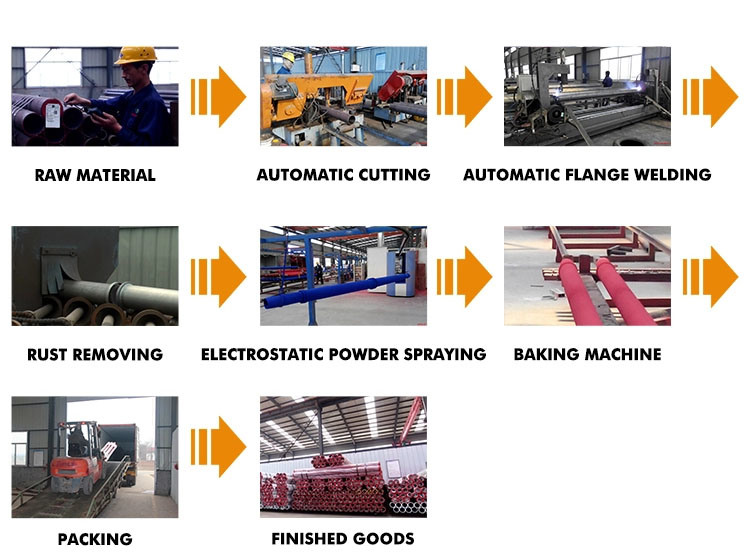

5.OEM available from us.Production display Putzmeister Concrete Boom Pump Parts Twin Wall Pipe
