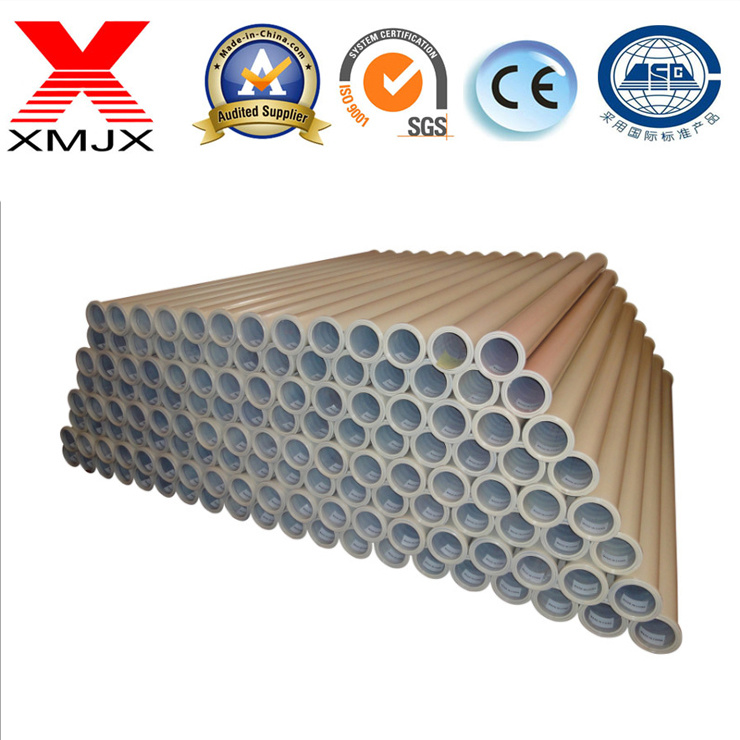

Single Wall DN125 Concrete Pump Hardened Delivery Pipe
Basic Info
Length(mm)
Customized
Hardened Process
UHF Quenching (400kHz)
Flange Tape
Sk 148mm
Test Pressure
280bar
Surface Coating
Baking Paint
Length Deviation
+-1mm
Hardeness
up to 65
Theoretical Weight(Lbs/Kg)
50/23
Weld Tensile Strength
>480bar
Color
Red Black White or Customized
Length (in/mm)
39.37/1000
Trademark
Ximai
Transport Package
Standard Export Package
Specification
HARDENED PIPE DN125 7.1mm
Origin
China
Factory directly supply High quality concrete hardenedpump pipe
| HT710W50 | ||||||||
| PRODUCT FEATURES | ||||||||
| HARDENED PIPE DN125 7.1mm | with 148mm chrome alloy liner weld ends | |||||||
| Part Number | Length(in/mm) | Theoretical weight(lbs./kg.) | HardenedProcess | HardnessHRC | LengthDeviation | TestPressure | WeldTensileStrength | SurfaceCoating |
| HT710W50L1M | 39.37/1000 | 50/23 | UHF Quenching(400KHz) | UP to 65 | ±1mm | 280bar | >480bar | Baking paint |
| HT710W50L2M | 78.75/2000 | 101/46 | UHF Quenching(400KHz) | UP to 65 | ±1mm | 280bar | >480bar | Baking paint |
| HT710W50L3M | 118.12/3000 | 152/69 | UHF Quenching(400KHz) | UP to 65 | ±1mm | 280bar | >480bar | Baking paint |
| HT710W50L4M | 157.48/4000 | 203/92 | UHF Quenching(400KHz) | UP to 65 | ±1mm | 280bar | >480bar | Baking paint |
| HT710W50L6M | 236.22/6000 | 304/138 | UHF Quenching(400KHz) | UP to 65 | ±1mm | 280bar | - | Primer |
| Any length can be customized,please consult us. | ||||||||
Our service….…………………………………………………………………………………………………………………………………….High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.Competitive PriceLarge scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop ShoppingOur major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead TimeWe have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export packageOur package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer ServiceTop sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.
