Steel Wire Reinforced concrete pump hose 85bar（1233psi）
Application…………………………………………………………………………………………………………………………………….

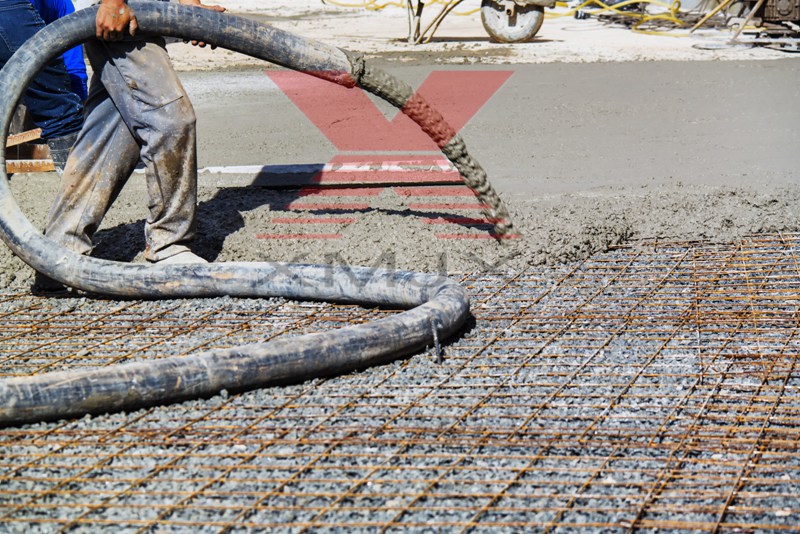

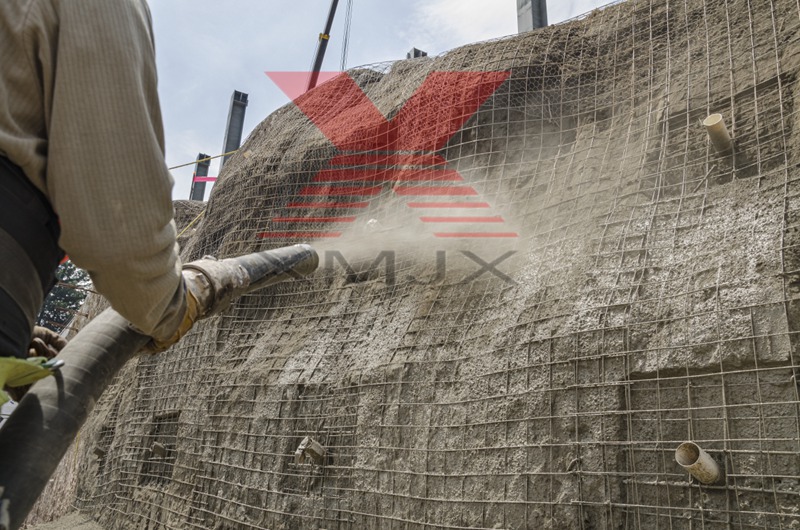

Wet concrete high pressure delivery by boom truck, various types of concrete wet spraying machines,conveying pumps, shotcrete machine.
Inner rubber: high wear-resistant NR synthetic
high wear resistance and aging resistance NR synthetic rubber
Parameters…………………………………………………………………………………………………………………………………….
|
Steel reinforced hose |
|||||||
|
Size |
ID |
OD |
steel wire layers |
working pressure |
Burst pressure |
bending radius |
weight |
|
2″ |
51±0.7 |
68±1.5 |
4 |
85bar/1233psi |
210bar/3046psi |
250 |
2.6 |
|
2.5″ |
64±0.8 |
86±1.5 |
4 |
85bar/1233psi |
210bar/3046psi |
300 |
4.3 |
|
3″ |
76±1.0 |
100±2 |
4 |
85bar/1233psi |
210bar/3046psi |
320 |
6 |
|
3.5″ |
89±1.0 |
116±2 |
4 |
85bar/1233psi |
210bar/3046psi |
350 |
7.5 |
|
4″ |
102±1.0 |
130±2 |
4 |
85bar/1233psi |
210bar/3046psi |
400 |
9 |
|
5″ |
127±1.0 |
158±2 |
4 |
85bar/1233psi |
210bar/3046psi |
500 |
12.5 |
|
6″ |
152±1.0 |
180±2 |
4 |
85bar/1233psi |
210bar/3046psi |
650 |
17 |
Hebei Ximai Machinery has involved in concrete industry over 20 years. The concrete pumping hose products has been spread to all over the world, Australia, USA, New Zealand, Southeast Asian, Middle East, and South America. From 2” to 5” hoses are widely applied for boom trucks, wet spay machine and shotcrete machine. The number of the steel wire normally is 2 or 4 layers. It is can be customized. For the end flange, HD, SK and Victaulic are all available.

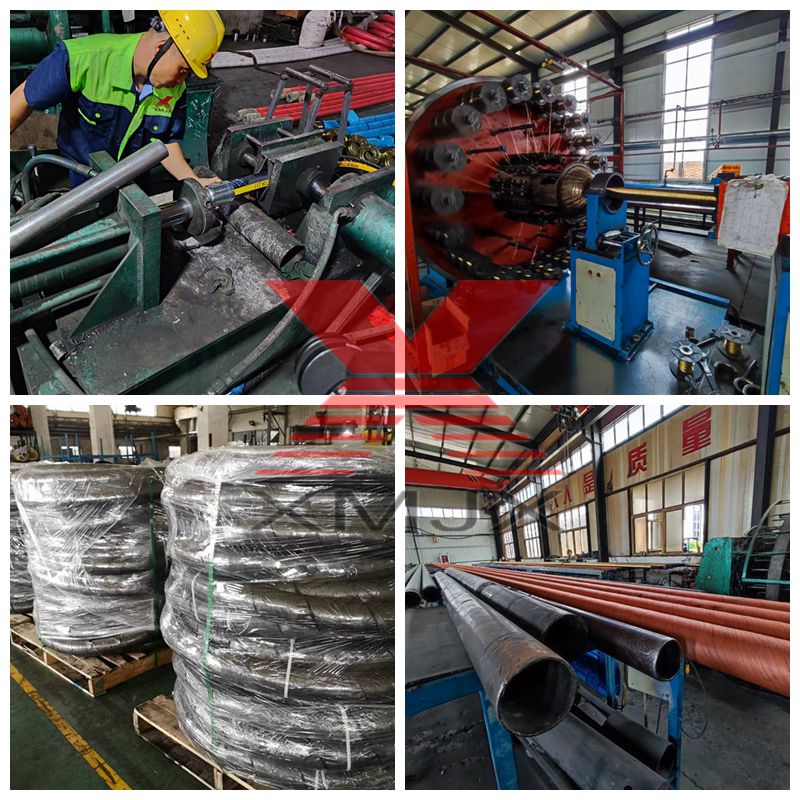

The ten automatic production line is high efficiency and the production capacity is over 3000 pieces per month. The strict quality control ensures the service life of the hoses.
