Super Purchasing for Concrete Repair - Concrete Pump Straight Pipe Seamless Twin Wall Pipe – Ximai Detail:

Basic Info

Model NO.

DN125-5" 4.8MM

Wall Thickness

1.65+3.2mm

Length Deviation

+-1mm

Length(in/mm)

118.12/3000 or Customized

Hardeness

up to 68HRC

Hardened Process

UHF Quenching (400kHz)

Theoretical Weight(Lbs/Kg)

101/46

Flange Tape

Sk148 HD157 Zx175 FM175

Weld Tensile Strength

>480bar

Test Pressure

>170bar

Color

Red Black White or Customized

Surface Coating

Baking Paint

Trademark

Ximai

Transport Package

Standard Export Package

Specification

DN125/5"

Origin

China

HS Code

841391

Product description

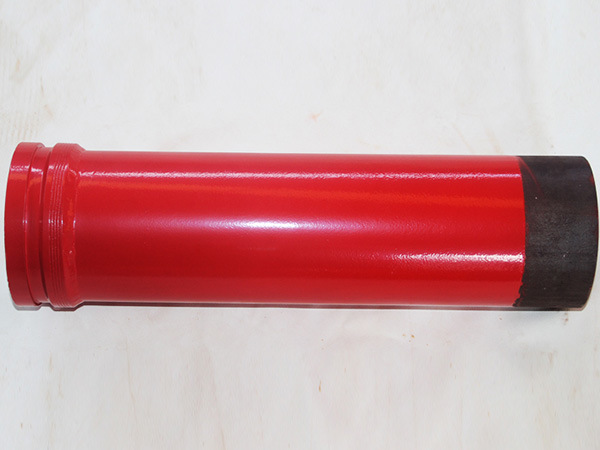

High quality twin wall concrete pump pipes

TWIN WALL BOOM PIPE DN125 4.85mm (3.25m + 1.6mm)					with 148mm chrome alloy liner weld ends
Part Number	Length(in/mm)	Theoretical weight(lbs./kg.)	HardenedProcess	HardnessHRC	LengthDeviation	TestPressure	WeldTensileStrength	SurfaceCoating
TW485W50L1M	39.37/1000	36/15	UHF Quenching(400KHz)	UP to 68	±1mm	170bar	>480bar	Baking paint
TW485W50L2M	78.75/2000	71/31	UHF Quenching(400KHz)	UP to 68	±1mm	170bar	>480bar	Baking paint
TW485W50L3M	118.12/3000	101/46	UHF Quenching(400KHz)	UP to 68	±1mm	170bar	>480bar	Baking paint
TW485W50L4M	157.48/4000	135/61	UHF Quenching(400KHz)	UP to 68	±1mm	170bar	>480bar	Baking paint
TW485W50L6M	236.22/6000	202/92	UHF Quenching(400KHz)	UP to 68	±1mm	170bar	-	Primer
Any length can be customized,please consult us.

1.We are a professional manufacturer of concrete pump pipes in China.Our products include delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.

2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.

3.The HRC of it’s inner wall can reach 60~68 degrees and the serving life of it can increase 3~5 times.

4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has a high wear-resistant.

5.OEM available from us.Production display Concrete Pump Straight Pipe Seamless Twin Wall Pipe

Product process Concrete Pump Straight Pipe Seamless Twin Wall Pipe Product testPackaging&ShippingContact us
