China Ximai Twin Walls Pipe Elbow DN125*90d Sale for Canada factory and manufacturers

Ximai Twin Walls Pipe Elbow DN125*90d Sale for Canada

Model NO.

DN125 R180 90°

Length(mm)

Customized

Hardened Process

UHF Quenching (400kHz)

Flange Tape

Sk 148mm

Test Pressure

160bar

Surface Coating

Baking Paint

Length Deviation

<+-1mm

Hardeness

up to 62-65HRC

Theoretical Weight(Lbs/Kg)

25.1/11.4

Weld Tensile Strength

>580bar

Color

Red Black White or Customized

Trademark

Ximai

Transport Package

Standard Export Package

Specification

TWIN WALL ELBOW DN125 R180 90°

Origin

China

HS Code

841340000

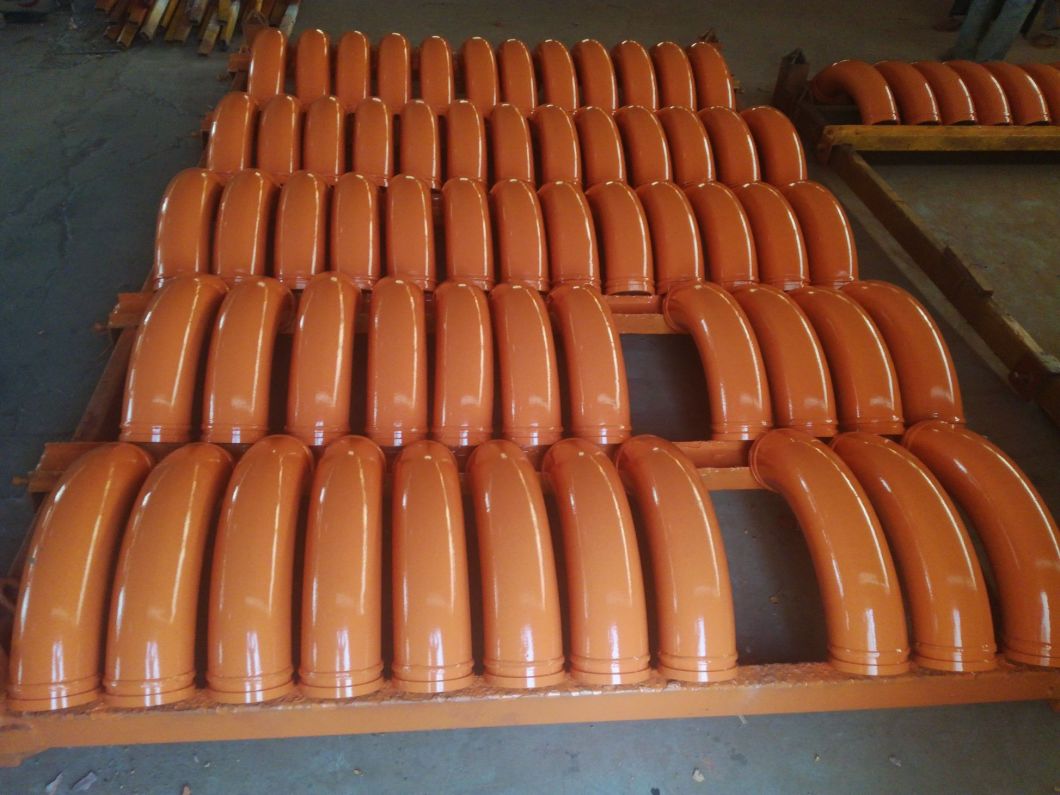

Factory directly supply High quality concrete pump twin wall elbow

TWIN WALL ELBOW DN125 R180 90°
CAST CHROME CARBIDE LINER+POLYMER DAMPING LAYER+ST52 SHELL
Part Number	Specification	Weightlbs/kgs	Liner Hardness	Dimension Tolerance	Pressure	Weld tensile strength	Surface coating
TWBE518090	DN125 R180 90°	25.1/11.4	Up to 62-65HRC	<1mm<1°	160bar	>580bar	Baking paint
All boom elbows and deck elbow for PM, SCHWING, CIAF, JUNJIN,KCP etc are available
